Enabling OAUTH2 Authentication
To enable OAUTH2 authentication for pgAdmin, you must configure the OAUTH2 settings in the config_local.py or config_system.py file (see the config.py documentation) on the system where pgAdmin is installed in Server mode. You can copy these settings from config.py file and modify the values for the following parameters:
| Parameter | Description |
|---|---|
| AUTHENTICATION_SOURCES | The default value for this parameter is internal. To enable OAUTH2 authentication, you must include oauth2 in the list of values for this parameter. you can modify the value as follows: * [‘oauth2’, ‘internal’]: pgAdmin will display an additional button for authenticating with oauth2 |
| OAUTH2_NAME | The name of the Oauth2 provider, ex: Google, Github |
| OAUTH2_DISPLAY_NAME | Oauth2 display name in pgAdmin |
| OAUTH2_CLIENT_ID | Oauth2 Client ID |
| OAUTH2_CLIENT_SECRET | Oauth2 Client Secret |
| OAUTH2_TOKEN_URL | Oauth2 Access Token endpoint |
| OAUTH2_AUTHORIZATION_URL | Endpoint for user authorization |
| OAUTH2_SERVER_METADATA_URL | Server metadata url for your OAuth2 provider |
| OAUTH2_API_BASE_URL | Oauth2 base URL endpoint to make requests simple, ex: https://api.github.com/ |
| OAUTH2_USERINFO_ENDPOINT | User Endpoint, ex: user (for github, or user/emails if the user's email address is private) and userinfo (for google), |
| OAUTH2_SCOPE | Oauth scope, ex: 'openid email profile'. Note that an 'email' claim is required in the resulting profile. |
| OAUTH2_ICON | The Font-awesome icon to be placed on the oauth2 button, ex: fa-github |
| OAUTH2_BUTTON_COLOR | Oauth2 button color |
| OAUTH2_USERNAME_CLAIM | The claim which is used for the username. If the value is empty the email is used as username, but if a value is provided, the claim has to exist. Ex: oid (for AzureAD), email (for Github) |
| OAUTH2_AUTO_CREATE_USER | Set the value to True if you want to automatically create a pgAdmin user corresponding to a successfully authenticated Oauth2 user. Please note that password is not stored in the pgAdmin database. |
| OAUTH2_ADDITIONAL_CLAIMS | If a dictionary is provided, pgAdmin will check for a matching key and value on the userinfo endpoint and in the Id Token. In case there is no match with the provided config, the user will receive an authorization error. Useful for checking AzureAD wids or groups, GitLab owner, maintainer and reporter claims. |
| OAUTH2_SSL_CERT_VERIFICATION | Set this variable to False to disable SSL certificate verification for OAuth2 provider. This may need to set False, in case of self-signed certificates. |
| OAUTH2_CHALLENGE_METHOD | Enable PKCE workflow. PKCE method name, only S256 is supported |
| OAUTH2_RESPONSE_TYPE | Enable PKCE workflow. Mandatory with OAUTH2_CHALLENGE_METHOD, must be set to code |
Redirect URL
The redirect url to configure Oauth2 server is
Master Password
In the multi user mode, pgAdmin uses user's login password to encrypt/decrypt the PostgreSQL server password. In the Oauth2 authentication, the pgAdmin does not store the user's password, so we need an encryption key to store the PostgreSQL server password. To accomplish this, set the configuration parameter MASTER_PASSWORD to True, so upon setting the master password, it will be used as an encryption key while storing the password. If it is False, the server password can not be stored.

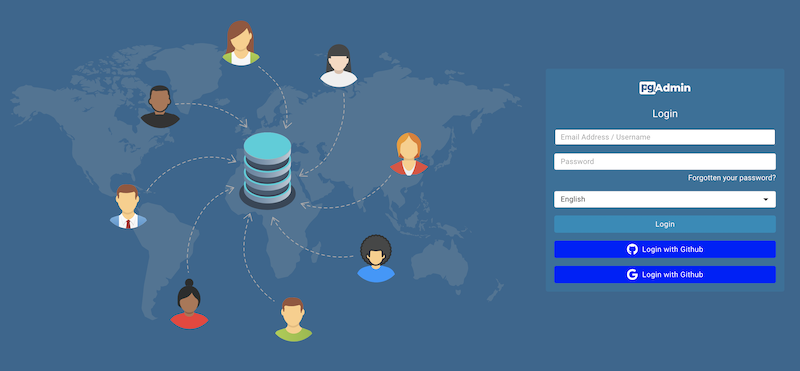

Login Page
After configuration, on restart, you can see the login page with the Oauth2 login button(s).
PKCE Workflow
Ref: https://oauth.net/2/pkce
To enable PKCE workflow, set the configuration parameters OAUTH2_CHALLENGE_METHOD to S256 and OAUTH2_RESPONSE_TYPE to code. Both parameters are mandatory to enable PKCE workflow.
