PGD Replication Group Node Dialog

Use the Replication Group Node dialog to view a PGD group/sub-group. A PGD cluster's nodes are gathered in groups. A group can also contain zero or more subgroups. Subgroups can be used to represent data centers or locations allowing commit scopes to refer to nodes in a particular region as a whole.

The dialog organizes the information through the following tabs: General

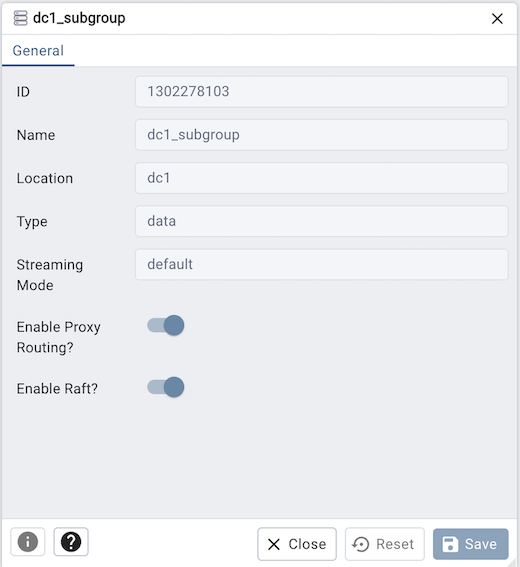

Replication Group Node Dialog general tab

  • The ID field is the ID of the node group.

  • The Name field is the name of the node group.

  • The Location field is the name of the location associated with the node group.

  • The Type field is the type of the node group, one of "global", "data", "shard" or "subscriber-only".

  • The Streaming Mode field is the transaction streaming setting of the node group, one of "off", "file", "writer", "auto" or "default"

  • The Enable Proxy Routing? field tells whether the node group allows routing from pgd-proxy.

  • The Enable Raft? field tells whether the node group allows Raft Consensus.

Other buttons:

  • Click the Info button (i) to access online help.

  • Click the Save button to save work.

  • Click the Close button to exit without saving work.

  • Click the Reset button to restore configuration parameters.

A group can have multiple servers and will be visible in the object explorer tree.
