Query Tool Toolbar

The Query Tool toolbar uses context-sensitive icons that provide shortcuts to frequently performed tasks. If an icon is highlighted, the option is enabled; if the icon is grayed-out, the task is disabled.

Note

The Query Tool and View/Edit Data tools are actually different operating modes of the same tool. Some controls will be disabled in either mode.

Query tool toolbar

Hover over an icon in pgAdmin to display a tooltip that describes the icon's functionality.

File Options

Icon Behavior Shortcut
Open File Click the Open File icon to display a previously saved query in the same tab of the SQL Editor. To open the file in a new tab, select Open in a new tab? option from the dropdown. Cmd/Ctrl + O
Save File Click the Save icon to perform a quick-save of a previously saved query, or to access the Save menu:
  • Select Save to save the selected content of the SQL Editor panel in a file.
  • Select Save As to open a new browser dialog and specify a new location to which to save the selected content of the SQL Editor panel.
 Cmd/Ctrl + S

Filter/Limit Options

Icon Behavior Shortcut
Filter Click the Filter icon to set filtering and sorting criteria for the data when in View/Edit data mode. Click the down arrow to access other filtering and sorting options:
  • In the SQL Filter, you can enter a SQL query as filtering criteria. In Data Sorting, you can select the column and specify the order for sorting.
  • Click Filter by Selection to show only the rows containing the values in the selected cells.
  • Click Exclude by Selection to show only the rows that do not contain the values in the selected cells.
  • Click Remove Sort/Filter to remove any previously selected sort or filtering options.
 Option/Alt + F
Limit Selector Select a value in the Limit Selector to limit the size of the dataset to a number of rows. Option/Alt + R

Query Editing Options

Query tool editing options

Icon Behavior Shortcut
Edit Use the Edit menu to search, replace, or navigate the code displayed in the SQL Editor: Option/Alt + Shift + N
Select Find to provide a search target, and search the SQL Editor contents. Cmd/Ctrl + F
Select Replace to locate and replace (with prompting) individual occurrences of the target. Option + Cmd + F (MAC) Ctrl + Shift + F (Others)
Select Go to Line/Column to go to specified line number and column position Cmd/Ctrl + L
Select Indent Selection to indent the currently selected text. Tab
Select Unindent Selection to remove indentation from the currently selected text. Shift + Tab
Select Toggle Comment to comment/uncomment any lines that contain the selection in SQL style. Cmd/Ctrl + /
Select Clear Query to clear the query editor window. Option/Alt + Ctrl + L
Select Format SQL to format the selected SQL or all the SQL if none is selected Cmd/Ctrl + K

Query Execution

Query tool execute options

Icon Behavior Shortcut
Stop Click the Stop icon to cancel the execution of the currently running query. Option + Shift + Q
Execute script Click the Execute script icon to either execute or refresh the query highlighted in the SQL editor panel. Click the down arrow to access other execution options:
  • Add a check next to Auto rollback on error? to instruct the server to automatically roll back a transaction if an error occurs during the transaction.
  • Add a check next to Auto commit? to instruct the server to automatically commit each transaction. Any changes made by the transaction will be visible to others, and durable in the event of a crash.
 F5
Execute query Click the Execute query icon to either execute the query where the cursor is present or refresh the query highlighted in the SQL editor panel. Option+F5 (MAC) Alt+F5 (Others)
Explain Click the Explain icon to view an explanation plan for the current query. The result of the EXPLAIN is displayed graphically on the Explain tab of the output panel, and in text form on the Data Output tab. F7
Explain analyze Click the Explain analyze icon to invoke an EXPLAIN ANALYZE command on the current query.Navigate through the Explain Options menu to select options for the EXPLAIN command:
  • Select Buffers to include information on buffer usage.
  • Select Costs to include information on the estimated startup and total cost of each plan node, as well as the estimated number of rows and the estimated width of each row.
  • Select Generic Plan to include the information on the Generic Plan.
  • Select Memory to include the information on memory consumption by the query planning phase.
  • Select Serialize to include information on the cost of serializing the query's output data, that is converting it to text or binary format to send to the client.
  • Select Settings to include the information on the configuration parameters.
  • Select Summary to include the summary information about the query plan.
  • Select Timing to include information about the startup time and the amount of time spent in each node of the query.
  • Select Verbose to display additional information regarding the query plan.
  • Select Wal to include the information on WAL record generation.
 Shift + F7
Commit Click the Commit icon to commit the transaction. Shift + Ctrl + M
Rollback Click the Rollback icon to rollback the transaction. Shift + Ctrl + R
Macros Click the Macros icon to manage the macros. You can create, edit or clear the macros through the Manage Macros option.

Data Editing Options

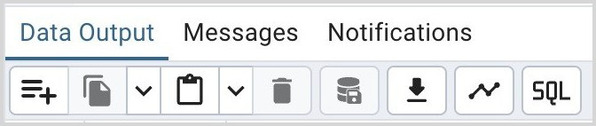

Query tool data editing options

Icon Behavior Shortcut
Add row Click the Add row icon to add a new row
Copy Click the Copy icon to copy the content with or without header:
  • Click the Copy icon to copy the content that is currently highlighted in the Data Output panel.
  • Click Copy with headers to copy the highlighted content along with the header.
 Cmd/Ctrl + C
Paste Click the Paste icon to paste a previously copied row with or without serial/identity values:
  • Click the Paste icon to paste a previously copied row into a new row.
  • Click the Paste with SERIAL/IDENTITY values? if you want to paste the copied column values in the serial/identity columns.
Note that copied row having Bytea datatype cell will be pasted as Null.		 Option/Alt + Shift + P
Delete Click the Delete icon to mark the selected rows for deletion. These marked rows get deletedwhen you click the Save Data Changes icon. Option/Alt + Shift + D
Save Data Changes Click the Save Data Changes icon to save data changes (insert, update, or delete) in the Data Output Panel to the server. F6
Save results to file Click the Save results to file icon to save the result set of the current query as a delimited text file (CSV, if the field separator is set to a comma). This button will only be enabled when a query has been executed and there are results in the data grid. You can specify the CSV/TXT settings in the Preference Dialogue under SQL Editor -> CSV/TXT output. F8
Graph Visualiser Use the Graph Visualiser button to generate graphs of the query results.
SQL Use the SQL button to check the current query that gave the data.

Pagination Options

Query tool data pagination options

Icon Behavior Shortcut
Rows Range Show the current row numbers visible in the data grid.
Edit Range Click to open the from and to rows range inputs to allow setting them.
Show Entire Range Click to get all the rows and set the from and to rows range
Page No Enter the page no you want to jump to out of total shown next to this input
First Page Click to go to the first page.
Previous Page Click to go to the previous page.
Next Page Click to go to the next page.
Last Page Click to go to the last page.

Query tool data pagination options

One can click the edit range button to open rows range editor:

  • From and to range should be between 1 and total rows.

  • The range can be applied by clicking the Apply button or by pressing enter in the range inputs.

  • Once the range is applied, pgAdmin will recalculate the rows per page. The pagination will then behave based on the new rows per page.

  • It may be possible that on pressing next page button, the new rows range is not next to manually enterred range.

Status Bar

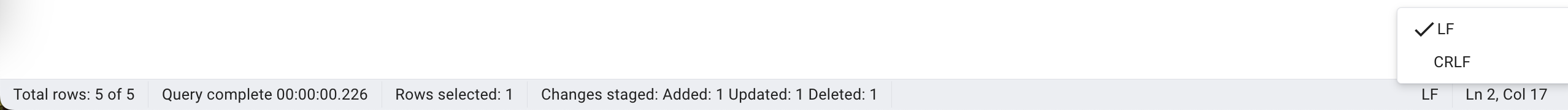

Query tool status bar

The status bar shows the following information:

  • Total rows: The total number of rows returned by the query.

  • Query complete: The time is taken by the query to complete.

  • Rows selected: The number of rows selected in the data output panel.

  • Changes staged: This information shows the number of rows added, deleted, and updated.

  • LF/CRLF: It shows the end of line sequence to be used for the editor. When opening an empty editor, it will be decided based on OS. And when opening an existing file, it will be based on file end of lines. One can change the EOL by clicking on any of the options.

  • Ln: In the Query tab, it is the line number at which the cursor is positioned.

  • Col: In the Query tab, it is the column number at which the cursor is positioned
