Geometry Constructors

ST_Collect

Creates a GeometryCollection or Multi* geometry from a set of geometries.

Synopsis

geometry ST_Collect(geometry g1, geometry g2)
geometry ST_Collect(geometry[] g1_array)
geometry ST_Collect(geometry set g1field)

Description

Collects geometries into a geometry collection. The result is either a Multi* or a GeometryCollection, depending on whether the input geometries have the same or different types (homogeneous or heterogeneous). The input geometries are left unchanged within the collection.

Variant 1: accepts two input geometries

Variant 2: accepts an array of geometries

Variant 3: aggregate function accepting a rowset of geometries.

Note

If any of the input geometries are collections (Multi* or GeometryCollection) ST_Collect returns a GeometryCollection (since that is the only type which can contain nested collections). To prevent this, use ST_Dump in a subquery to expand the input collections to their atomic elements (see example below).

Note

ST_Collect and ST_Union appear similar, but in fact operate quite differently. ST_Collect aggregates geometries into a collection without changing them in any way. ST_Union geometrically merges geometries where they overlap, and splits linestrings at intersections. It may return single geometries when it dissolves boundaries.

Availability: 1.4.0 - ST_Collect(geomarray) was introduced. ST_Collect was enhanced to handle more geometries faster.

Examples - Two-input variant

Collect 2D points.

SELECT ST_AsText( ST_Collect( ST_GeomFromText('POINT(1 2)'),
    ST_GeomFromText('POINT(-2 3)') ));

st_astext
----------
MULTIPOINT((1 2),(-2 3))

Collect 3D points.

SELECT ST_AsEWKT( ST_Collect( ST_GeomFromEWKT('POINT(1 2 3)'),
        ST_GeomFromEWKT('POINT(1 2 4)') ) );

        st_asewkt
-------------------------
 MULTIPOINT(1 2 3,1 2 4)

Collect curves.

SELECT ST_AsText( ST_Collect( 'CIRCULARSTRING(220268 150415,220227 150505,220227 150406)',
        'CIRCULARSTRING(220227 150406,2220227 150407,220227 150406)'));

        st_astext
------------------------------------------------------------------------------------
MULTICURVE(CIRCULARSTRING(220268 150415,220227 150505,220227 150406),
 CIRCULARSTRING(220227 150406,2220227 150407,220227 150406))

Examples - Array variant

Using an array constructor for a subquery.

SELECT ST_Collect( ARRAY( SELECT geom FROM sometable ) );

Using an array constructor for values.

SELECT ST_AsText(  ST_Collect(
        ARRAY[ ST_GeomFromText('LINESTRING(1 2, 3 4)'),
            ST_GeomFromText('LINESTRING(3 4, 4 5)') ] )) As wktcollect;

--wkt collect --
MULTILINESTRING((1 2,3 4),(3 4,4 5))

Examples - Aggregate variant

Creating multiple collections by grouping geometries in a table.

SELECT stusps, ST_Collect(f.geom) as geom
     FROM (SELECT stusps, (ST_Dump(geom)).geom As geom
                FROM
                somestatetable ) As f
    GROUP BY stusps

ST_LineFromMultiPoint

Creates a LineString from a MultiPoint geometry.

Synopsis

geometry ST_LineFromMultiPoint(geometry  aMultiPoint)

Description

Creates a LineString from a MultiPoint geometry.

Use ST_MakeLine to create lines from Point or LineString inputs.

Examples

Create a 3D line string from a 3D MultiPoint

SELECT ST_AsEWKT(  ST_LineFromMultiPoint('MULTIPOINT(1 2 3, 4 5 6, 7 8 9)')  ));

--result--
LINESTRING(1 2 3,4 5 6,7 8 9)

ST_MakeEnvelope

Creates a rectangular Polygon from minimum and maximum coordinates.

Synopsis

geometry ST_MakeEnvelope(float xmin, float ymin, float xmax, float ymax, integer srid=unknown)

Description

Creates a rectangular Polygon from the minimum and maximum values for X and Y. Input values must be in the spatial reference system specified by the SRID. If no SRID is specified the unknown spatial reference system (SRID 0) is used.

Availability: 1.5

Enhanced: 2.0: Ability to specify an envelope without specifying an SRID was introduced.

Example: Building a bounding box polygon

SELECT ST_AsText( ST_MakeEnvelope(10, 10, 11, 11, 4326) );

st_asewkt
-----------
POLYGON((10 10, 10 11, 11 11, 11 10, 10 10))

ST_MakeLine

Creates a LineString from Point, MultiPoint, or LineString geometries.

Synopsis

geometry ST_MakeLine(geometry geom1, geometry geom2)
geometry ST_MakeLine(geometry[] geoms_array)
geometry ST_MakeLine(geometry set geoms)

Description

Creates a LineString containing the points of Point, MultiPoint, or LineString geometries. Other geometry types cause an error.

Variant 1: accepts two input geometries

Variant 2: accepts an array of geometries

Variant 3: aggregate function accepting a rowset of geometries. To ensure the order of the input geometries use ORDER BY in the function call, or a subquery with an ORDER BY clause.

Repeated nodes at the beginning of input LineStrings are collapsed to a single point. Repeated points in Point and MultiPoint inputs are not collapsed. ST_RemoveRepeatedPoints can be used to collapse repeated points from the output LineString.

Availability: 2.3.0 - Support for MultiPoint input elements was introduced

Availability: 2.0.0 - Support for LineString input elements was introduced

Availability: 1.4.0 - ST_MakeLine(geomarray) was introduced. ST_MakeLine aggregate functions was enhanced to handle more points faster.

Examples: Two-input variant

Create a line composed of two points.

SELECT ST_AsText( ST_MakeLine(ST_Point(1,2), ST_Point(3,4)) );

      st_astext
---------------------
 LINESTRING(1 2,3 4)

Create a 3D line from two 3D points.

SELECT ST_AsEWKT( ST_MakeLine(ST_MakePoint(1,2,3), ST_MakePoint(3,4,5) ));

        st_asewkt
-------------------------
 LINESTRING(1 2 3,3 4 5)

Create a line from two disjoint LineStrings.

 select ST_AsText( ST_MakeLine( 'LINESTRING(0 0, 1 1)', 'LINESTRING(2 2, 3 3)' ) );

          st_astext
-----------------------------
 LINESTRING(0 0,1 1,2 2,3 3)

Examples: Array variant

Create a line from an array formed by a subquery with ordering.

SELECT ST_MakeLine( ARRAY( SELECT ST_Centroid(geom) FROM visit_locations ORDER BY visit_time) );

Create a 3D line from an array of 3D points

SELECT ST_AsEWKT( ST_MakeLine(
          ARRAY[ ST_MakePoint(1,2,3), ST_MakePoint(3,4,5), ST_MakePoint(6,6,6) ]  ));

        st_asewkt
-------------------------
LINESTRING(1 2 3,3 4 5,6 6 6)

Examples: Aggregate variant

This example queries time-based sequences of GPS points from a set of tracks and creates one record for each track. The result geometries are LineStrings composed of the GPS track points in the order of travel.

Using aggregate ORDER BY provides a correctly-ordered LineString.

SELECT gps.track_id, ST_MakeLine(gps.geom ORDER BY gps_time) As geom
    FROM gps_points As gps
    GROUP BY track_id;

Prior to PostgreSQL 9, ordering in a subquery can be used. However, sometimes the query plan may not respect the order of the subquery.

SELECT gps.track_id, ST_MakeLine(gps.geom) As geom
    FROM ( SELECT track_id, gps_time, geom
            FROM gps_points ORDER BY track_id, gps_time ) As gps
    GROUP BY track_id;

ST_MakePoint

Creates a 2D, 3DZ or 4D Point.

Synopsis

geometry ST_MakePoint(float x, float y)

geometry ST_MakePoint(float x, float y, float z)

geometry ST_MakePoint(float x, float y, float z, float m)

Description

Creates a 2D XY, 3D XYZ or 4D XYZM Point geometry. Use ST_MakePointM to make points with XYM coordinates.

Use ST_SetSRID to specify a SRID for the created point.

While not OGC-compliant, ST_MakePoint is faster and more precise than ST_GeomFromText and ST_PointFromText. It is also easier to use for numeric coordinate values.

Note

For geodetic coordinates, X is longitude and Y is latitude

Note

The functions ST_Point, ST_PointZ, ST_PointM, and ST_PointZM can be used to create points with a given SRID.

Examples

-- Create a point with unknown SRID
SELECT ST_MakePoint(-71.1043443253471, 42.3150676015829);

-- Create a point in the WGS 84 geodetic CRS
SELECT ST_SetSRID(ST_MakePoint(-71.1043443253471, 42.3150676015829),4326);

-- Create a 3D point (e.g. has altitude)
SELECT ST_MakePoint(1, 2,1.5);

-- Get z of point
SELECT ST_Z(ST_MakePoint(1, 2,1.5));
result
-------
1.5

ST_MakePointM

Creates a Point from X, Y and M values.

Synopsis

geometry ST_MakePointM(float x, float y, float m)

Description

Creates a point with X, Y and M (measure) ordinates. Use ST_MakePoint to make points with XY, XYZ, or XYZM coordinates.

Use ST_SetSRID to specify a SRID for the created point.

Note

For geodetic coordinates, X is longitude and Y is latitude

Note

The functions ST_PointM, and ST_PointZM can be used to create points with an M value and a given SRID.

Examples

Note

ST_AsEWKT is used for text output because ST_AsText does not support M values.

Create point with unknown SRID.

SELECT ST_AsEWKT(  ST_MakePointM(-71.1043443253471, 42.3150676015829, 10)  );

                   st_asewkt
-----------------------------------------------
 POINTM(-71.1043443253471 42.3150676015829 10)

Create point with a measure in the WGS 84 geodetic coordinate system.

SELECT ST_AsEWKT( ST_SetSRID(  ST_MakePointM(-71.104, 42.315, 10),  4326));

                        st_asewkt
---------------------------------------------------------
SRID=4326;POINTM(-71.104 42.315 10)

Get measure of created point.

SELECT ST_M(  ST_MakePointM(-71.104, 42.315, 10)  );

result
-------
10

ST_MakePolygon

Creates a Polygon from a shell and optional list of holes.

Synopsis

geometry ST_MakePolygon(geometry linestring)

geometry ST_MakePolygon(geometry outerlinestring, geometry[] interiorlinestrings)

Description

Creates a Polygon formed by the given shell and optional array of holes. Input geometries must be closed LineStrings (rings).

Variant 1: Accepts one shell LineString.

Variant 2: Accepts a shell LineString and an array of inner (hole) LineStrings. A geometry array can be constructed using the PostgreSQL array_agg(), ARRAY[] or ARRAY() constructs.

Note

This function does not accept MultiLineStrings. Use ST_LineMerge to generate a LineString, or ST_Dump to extract LineStrings.

Examples: Single input variant

Create a Polygon from a 2D LineString.

SELECT ST_MakePolygon( ST_GeomFromText('LINESTRING(75 29,77 29,77 29, 75 29)'));

Create a Polygon from an open LineString, using ST_StartPoint and ST_AddPoint to close it.

SELECT ST_MakePolygon( ST_AddPoint(foo.open_line, ST_StartPoint(foo.open_line)) )
FROM (
  SELECT ST_GeomFromText('LINESTRING(75 29,77 29,77 29, 75 29)') As open_line) As foo;

Create a Polygon from a 3D LineString

SELECT ST_AsEWKT( ST_MakePolygon( 'LINESTRING(75.15 29.53 1,77 29 1,77.6 29.5 1, 75.15 29.53 1)'));

st_asewkt
-----------
POLYGON((75.15 29.53 1,77 29 1,77.6 29.5 1,75.15 29.53 1))

Create a Polygon from a LineString with measures

SELECT ST_AsEWKT( ST_MakePolygon( 'LINESTRINGM(75.15 29.53 1,77 29 1,77.6 29.5 2, 75.15 29.53 2)' ));

st_asewkt
----------
POLYGONM((75.15 29.53 1,77 29 1,77.6 29.5 2,75.15 29.53 2))

Examples: Outer shell with inner holes variant

Create a donut Polygon with an extra hole

SELECT ST_MakePolygon( ST_ExteriorRing( ST_Buffer(ring.line,10)),
    ARRAY[  ST_Translate(ring.line, 1, 1),
        ST_ExteriorRing(ST_Buffer(ST_Point(20,20),1)) ]
    )
FROM (SELECT ST_ExteriorRing(
    ST_Buffer(ST_Point(10,10),10,10)) AS line ) AS ring;

Create a set of province boundaries with holes representing lakes. The input is a table of province Polygons/MultiPolygons and a table of water linestrings. Lines forming lakes are determined by using ST_IsClosed. The province linework is extracted by using ST_Boundary. As required by ST_MakePolygon, the boundary is forced to be a single LineString by using ST_LineMerge. (However, note that if a province has more than one region or has islands this will produce an invalid polygon.) Using a LEFT JOIN ensures all provinces are included even if they have no lakes.

Note

The CASE construct is used because passing a null array into ST_MakePolygon results in a NULL return value.

SELECT p.gid, p.province_name,
    CASE WHEN array_agg(w.geom) IS NULL
    THEN p.geom
    ELSE  ST_MakePolygon( ST_LineMerge(ST_Boundary(p.geom)),
                        array_agg(w.geom)) END
FROM
    provinces p LEFT JOIN waterlines w
        ON (ST_Within(w.geom, p.geom) AND ST_IsClosed(w.geom))
GROUP BY p.gid, p.province_name, p.geom;

Another technique is to utilize a correlated subquery and the ARRAY() constructor that converts a row set to an array.

SELECT p.gid,  p.province_name,
    CASE WHEN EXISTS( SELECT w.geom
        FROM waterlines w
        WHERE ST_Within(w.geom, p.geom)
        AND ST_IsClosed(w.geom))
    THEN ST_MakePolygon(
        ST_LineMerge(ST_Boundary(p.geom)),
        ARRAY( SELECT w.geom
            FROM waterlines w
            WHERE ST_Within(w.geom, p.geom)
            AND ST_IsClosed(w.geom)))
    ELSE p.geom
    END AS geom
FROM provinces p;

ST_Point

Creates a Point with X, Y and SRID values.

Synopsis

geometry ST_Point(float x, float y)

geometry ST_Point(float x, float y, integer srid=unknown)

Description

Returns a Point with the given X and Y coordinate values. This is the SQL-MM equivalent for ST_MakePoint that takes just X and Y.

Note

For geodetic coordinates, X is longitude and Y is latitude

Enhanced: 3.2.0 srid as an extra optional argument was added. Older installs require combining with ST_SetSRID to mark the srid on the geometry.

SQL-MM 3: 6.1.2

Examples: Geometry

SELECT ST_Point( -71.104, 42.315);

Creating a point with SRID specified:

SELECT ST_Point( -71.104, 42.315, 4326);

Alternative way of specifying SRID:

SELECT ST_SetSRID( ST_Point( -71.104, 42.315), 4326);

Examples: Geography

Create geography points using the :: cast syntax:

SELECT ST_Point( -71.104, 42.315, 4326)::geography;

Pre-PostGIS 3.2 code, using CAST:

SELECT CAST( ST_SetSRID(ST_Point( -71.104, 42.315), 4326) AS geography);

If the point coordinates are not in a geodetic coordinate system (such as WGS84), then they must be reprojected before casting to a geography. In this example a point in Pennsylvania State Plane feet (SRID 2273) is projected to WGS84 (SRID 4326).

SELECT ST_Transform( ST_Point( 3637510, 3014852, 2273), 4326)::geography;

ST_PointZ

Creates a Point with X, Y, Z and SRID values.

Synopsis

geometry ST_PointZ(float x, float y, float z, integer srid=unknown)

Description

Returns an Point with the given X, Y and Z coordinate values, and optionally an SRID number.

Enhanced: 3.2.0 srid as an extra optional argument was added. Older installs require combining with ST_SetSRID to mark the srid on the geometry.

Examples

SELECT ST_PointZ(-71.104, 42.315, 3.4, 4326)

SELECT ST_PointZ(-71.104, 42.315, 3.4, srid => 4326)

SELECT ST_PointZ(-71.104, 42.315, 3.4)

ST_PointM

Creates a Point with X, Y, M and SRID values.

Synopsis

geometry ST_PointM(float x, float y, float m, integer srid=unknown)

Description

Returns an Point with the given X, Y and M coordinate values, and optionally an SRID number.

Enhanced: 3.2.0 srid as an extra optional argument was added. Older installs require combining with ST_SetSRID to mark the srid on the geometry.

Examples

SELECT ST_PointM(-71.104, 42.315, 3.4, 4326)

SELECT ST_PointM(-71.104, 42.315, 3.4, srid => 4326)

SELECT ST_PointM(-71.104, 42.315, 3.4)

ST_PointZM

Creates a Point with X, Y, Z, M and SRID values.

Synopsis

geometry ST_PointZM(float x, float y, float z, float m, integer srid=unknown)

Description

Returns an Point with the given X, Y, Z and M coordinate values, and optionally an SRID number.

Enhanced: 3.2.0 srid as an extra optional argument was added. Older installs require combining with ST_SetSRID to mark the srid on the geometry.

Examples

SELECT ST_PointZM(-71.104, 42.315, 3.4, 4.5, 4326)

SELECT ST_PointZM(-71.104, 42.315, 3.4, 4.5, srid => 4326)

SELECT ST_PointZM(-71.104, 42.315, 3.4, 4.5)

ST_Polygon

Creates a Polygon from a LineString with a specified SRID.

Synopsis

geometry ST_Polygon(geometry  lineString, integer  srid)

Description

Returns a polygon built from the given LineString and sets the spatial reference system from the srid.

ST_Polygon is similar to ST_MakePolygon Variant 1 with the addition of setting the SRID.

To create polygons with holes use ST_MakePolygon Variant 2 and then ST_SetSRID.

Note

This function does not accept MultiLineStrings. Use ST_LineMerge to generate a LineString, or ST_Dump to extract LineStrings.

SQL-MM 3: 8.3.2

Examples

Create a 2D polygon.

SELECT ST_AsText( ST_Polygon('LINESTRING(75 29, 77 29, 77 29, 75 29)'::geometry, 4326) );

-- result --
POLYGON((75 29, 77 29, 77 29, 75 29))

Create a 3D polygon.

SELECT ST_AsEWKT( ST_Polygon( ST_GeomFromEWKT('LINESTRING(75 29 1, 77 29 2, 77 29 3, 75 29 1)'), 4326) );

-- result --
SRID=4326;POLYGON((75 29 1, 77 29 2, 77 29 3, 75 29 1))

ST_TileEnvelope

Creates a rectangular Polygon in Web Mercator (SRID:3857) using the XYZ tile system.

Synopsis

geometry ST_TileEnvelope(integer tileZoom, integer tileX, integer tileY, geometry bounds=SRID=3857;LINESTRING(-20037508.342789 -20037508.342789,20037508.342789 20037508.342789), float margin=0.0)

Description

Creates a rectangular Polygon giving the extent of a tile in the XYZ tile system. The tile is specified by the zoom level Z and the XY index of the tile in the grid at that level. Can be used to define the tile bounds required by ST_AsMVTGeom to convert geometry into the MVT tile coordinate space.

By default, the tile envelope is in the Web Mercator coordinate system (SRID:3857) using the standard range of the Web Mercator system (-20037508.342789, 20037508.342789). This is the most common coordinate system used for MVT tiles. The optional bounds parameter can be used to generate tiles in any coordinate system. It is a geometry that has the SRID and extent of the "Zoom Level zero" square within which the XYZ tile system is inscribed.

The optional margin parameter can be used to expand a tile by the given percentage. E.g. margin=0.125 expands the tile by 12.5%, which is equivalent to buffer=512 when the tile extent size is 4096, as used in ST_AsMVTGeom. This is useful to create a tile buffer to include data lying outside of the tile's visible area, but whose existence affects the tile rendering. For example, a city name (a point) could be near an edge of a tile, so its label should be rendered on two tiles, even though the point is located in the visible area of just one tile. Using expanded tiles in a query will include the city point in both tiles. Use a negative value to shrink the tile instead. Values less than -0.5 are prohibited because that would eliminate the tile completely. Do not specify a margin when using with ST_AsMVTGeom. See the example for ST_AsMVT.

Enhanced: 3.1.0 Added margin parameter.

Availability: 3.0.0

Example: Building a tile envelope

SELECT ST_AsText( ST_TileEnvelope(2, 1, 1) );

 st_astext
------------------------------
 POLYGON((-10018754.1713945 0,-10018754.1713945 10018754.1713945,0 10018754.1713945,0 0,-10018754.1713945 0))

SELECT ST_AsText( ST_TileEnvelope(3, 1, 1, ST_MakeEnvelope(-180, -90, 180, 90, 4326) ) );

                      st_astext
------------------------------------------------------
 POLYGON((-135 45,-135 67.5,-90 67.5,-90 45,-135 45))

ST_HexagonGrid

Returns a set of hexagons and cell indices that completely cover the bounds of the geometry argument.

Synopsis

setof record ST_HexagonGrid(float8 size, geometry bounds)

Description

Starts with the concept of a hexagon tiling of the plane. (Not a hexagon tiling of the globe, this is not the H3 tiling scheme.) For a given planar SRS, and a given edge size, starting at the origin of the SRS, there is one unique hexagonal tiling of the plane, Tiling(SRS, Size). This function answers the question: what hexagons in a given Tiling(SRS, Size) overlap with a given bounds.

The SRS for the output hexagons is the SRS provided by the bounds geometry.

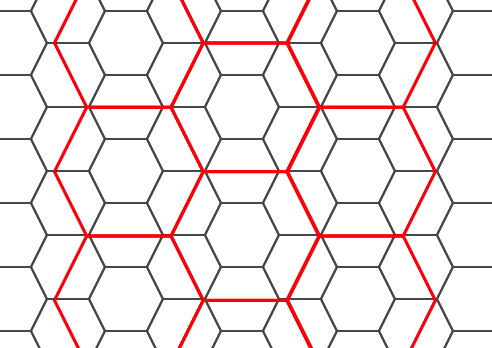

Doubling or tripling the edge size of the hexagon generates a new parent tiling that fits with the origin tiling. Unfortunately, it is not possible to generate parent hexagon tilings that the child tiles perfectly fit inside.

Availability: 3.1.0

Example: Counting points in hexagons

To do a point summary against a hexagonal tiling, generate a hexagon grid using the extent of the points as the bounds, then spatially join to that grid.

SELECT COUNT(*), hexes.geom
FROM
    ST_HexagonGrid(
        10000,
        ST_SetSRID(ST_EstimatedExtent('pointtable', 'geom'), 3857)
    ) AS hexes
    INNER JOIN
    pointtable AS pts
    ON ST_Intersects(pts.geom, hexes.geom)
GROUP BY hexes.geom;

Example: Generating hex coverage of polygons

If we generate a set of hexagons for each polygon boundary and filter out those that do not intersect their hexagons, we end up with a tiling for each polygon.

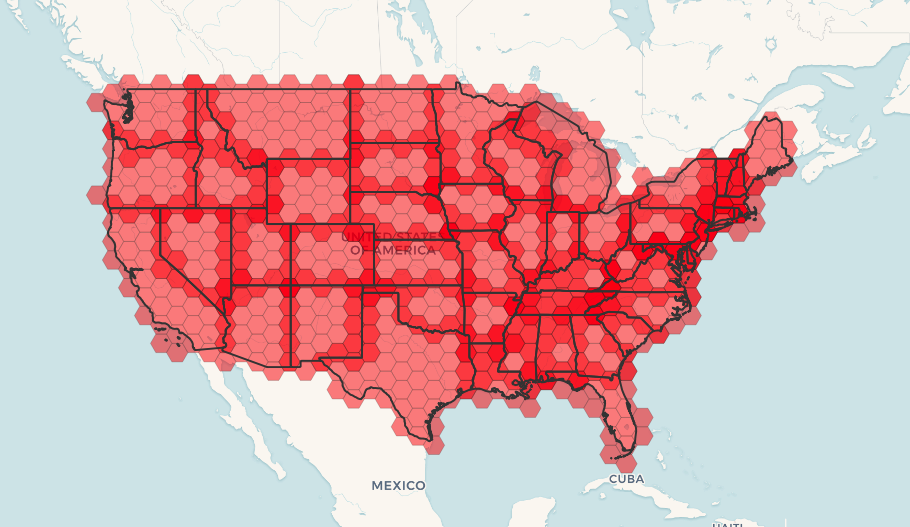

Tiling states results in a hexagon coverage of each state, and multiple hexagons overlapping at the borders between states.

Note

The LATERAL keyword is implied for set-returning functions when referring to a prior table in the FROM list. So CROSS JOIN LATERAL, CROSS JOIN, or just plain , are equivalent constructs for this example.

SELECT admin1.gid, hex.geom
FROM
    admin1
    CROSS JOIN
    ST_HexagonGrid(100000, admin1.geom) AS hex
WHERE
    adm0_a3 = 'USA'
    AND
    ST_Intersects(admin1.geom, hex.geom)

ST_Hexagon

Returns a single hexagon, using the provided edge size and cell coordinate within the hexagon grid space.

Synopsis

geometry ST_Hexagon(float8 size, integer cell_i, integer cell_j, geometry origin)

Description

Uses the same hexagon tiling concept as ST_HexagonGrid, but generates just one hexagon at the desired cell coordinate. Optionally, can adjust origin coordinate of the tiling, the default origin is at 0,0.

Hexagons are generated with no SRID set, so use ST_SetSRID to set the SRID to the one you expect.

Availability: 3.1.0

Example: Creating a hexagon at the origin

SELECT ST_AsText(ST_SetSRID(ST_Hexagon(1.0, 0, 0), 3857));

POLYGON((-1 0,-0.5
         -0.866025403784439,0.5
         -0.866025403784439,1
         0,0.5
         0.866025403784439,-0.5
         0.866025403784439,-1 0))

ST_SquareGrid

Returns a set of grid squares and cell indices that completely cover the bounds of the geometry argument.

Synopsis

setof record ST_SquareGrid(float8 size, geometry bounds)

Description

Starts with the concept of a square tiling of the plane. For a given planar SRS, and a given edge size, starting at the origin of the SRS, there is one unique square tiling of the plane, Tiling(SRS, Size). This function answers the question: what grids in a given Tiling(SRS, Size) overlap with a given bounds.

The SRS for the output squares is the SRS provided by the bounds geometry.

Doubling or edge size of the square generates a new parent tiling that perfectly fits with the original tiling. Standard web map tilings in mercator are just powers-of-two square grids in the mercator plane.

Availability: 3.1.0

Example: Generating a 1 degree grid for a country

The grid will fill the whole bounds of the country, so if you want just squares that touch the country you will have to filter afterwards with ST_Intersects.

WITH grid AS (
SELECT (ST_SquareGrid(1, ST_Transform(geom,4326))).*
FROM admin0 WHERE name = 'Canada'
)
  SELEcT ST_AsText(geom)
  FROM grid

Example: Counting points in squares (using single chopped grid)

To do a point summary against a square tiling, generate a square grid using the extent of the points as the bounds, then spatially join to that grid. Note the estimated extent might be off from actual extent, so be cautious and at very least make sure you've analyzed your table.

SELECT COUNT(*), squares.geom
    FROM
    pointtable AS pts
    INNER JOIN
    ST_SquareGrid(
        1000,
        ST_SetSRID(ST_EstimatedExtent('pointtable', 'geom'), 3857)
    ) AS squares
    ON ST_Intersects(pts.geom, squares.geom)
    GROUP BY squares.geom

Example: Counting points in squares using set of grid per point

This yields the same result as the first example but will be slower for a large number of points

SELECT COUNT(*), squares.geom
    FROM
    pointtable AS pts
    INNER JOIN
    ST_SquareGrid(
        1000,
       pts.geom
    ) AS squares
    ON ST_Intersects(pts.geom, squares.geom)
    GROUP BY squares.geom

ST_Square

Returns a single square, using the provided edge size and cell coordinate within the square grid space.

Synopsis

geometry ST_Square(float8 size, integer cell_i, integer cell_j, geometry origin)

Description

Uses the same square tiling concept as ST_SquareGrid, but generates just one square at the desired cell coordinate. Optionally, can adjust origin coordinate of the tiling, the default origin is at 0,0.

Squares are generated with no SRID set, so use ST_SetSRID to set the SRID to the one you expect.

Availability: 3.1.0

Example: Creating a square at the origin

SELECT ST_AsText(ST_SetSRID(ST_Square(1.0, 0, 0), 3857));

 POLYGON((0 0,0 1,1 1,1 0,0 0))

ST_Letters

Returns the input letters rendered as geometry with a default start position at the origin and default text height of 100.

Synopsis

geometry ST_Letters(text  letters, json  font)

Description

Uses a built-in font to render out a string as a multipolygon geometry. The default text height is 100.0, the distance from the bottom of a descender to the top of a capital. The default start position places the start of the baseline at the origin. Over-riding the font involves passing in a json map, with a character as the key, and base64 encoded TWKB for the font shape, with the fonts having a height of 1000 units from the bottom of the descenders to the tops of the capitals.

The text is generated at the origin by default, so to reposition and resize the text, first apply the ST_Scale function and then apply the ST_Translate function.

Availability: 3.3.0

Example: Generating the word 'Yo'

SELECT ST_AsText(ST_Letters('Yo'), 1);

Letters generated by ST_Letters

Example: Scaling and moving words

SELECT ST_Translate(ST_Scale(ST_Letters('Yo'), 10, 10), 100,100);

Geometry Constructors

ST_Collect

Synopsis

Description

Examples - Two-input variant

Examples - Array variant

Examples - Aggregate variant

See Also

ST_LineFromMultiPoint

Synopsis

Description

Examples

See Also

ST_MakeEnvelope

Synopsis

Description

Example: Building a bounding box polygon

See Also

ST_MakeLine

Synopsis

Description

Examples: Two-input variant

Examples: Array variant

Examples: Aggregate variant

See Also

ST_MakePoint

Synopsis

Description

Examples

See Also

ST_MakePointM

Synopsis

Description

Examples

See Also

ST_MakePolygon

Synopsis

Description

Examples: Single input variant

Examples: Outer shell with inner holes variant

See Also

ST_Point

Synopsis

Description

Examples: Geometry

Examples: Geography

See Also

ST_PointZ

Synopsis

Description

Examples

See Also

ST_PointM

Synopsis

Description

Examples

See Also

ST_PointZM

Synopsis

Description

Examples

See Also

ST_Polygon

Synopsis

Description

Examples

See Also

ST_TileEnvelope

Synopsis

Description

Example: Building a tile envelope

See Also

ST_HexagonGrid

Synopsis

Description

Example: Counting points in hexagons

Example: Generating hex coverage of polygons

See Also

ST_Hexagon

Synopsis
