Enabling and Using the MCP Server

The AI Services pane on your database's management page displays icons you can use to deploy available services on your database.

The pgEdge Postgres MCP Server acts as a gateway to your Postgres database. The server translates requests into operations against your database. A read-only server connects to the database as the app_read_only role, which has read access to every table app can read. With Allow writes on, the server connects as app.

Select Enable MCP to deploy the server. When the service is deployed, use the Details button to manage the server.

Enabling the MCP Server

To enable an MCP Server, select Enable MCP on the AI Services pane of your database's management page. The button is active only while the database status is Available or Degraded; on a database in any other status, hovering over the button displays Database not available.

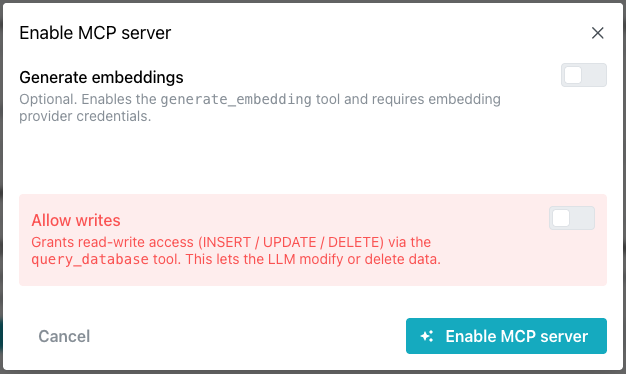

When the Enable MCP Server popup opens, select the features you want to enable. The popup offers two settings; both options are off by default. Submitting the form unchanged creates a read-only server with a platform-generated bearer token.

Select:

• Enable Generate embeddings to expose the generate_embedding tool, allowing the connected LLM to request vector embeddings for text (for example, to support semantic search of your database using pgvector). Enabling this feature requires you to select a provider and model, and to supply an API key for that provider.

• Enable Allow writes to permit the query_database tool to execute mutating SQL (INSERT/UPDATE/DELETE) as well as read-only queries. Leave Allow writes disabled to restrict the LLM to read-only access, the safer default.

pgEdge Starfleet supports two embedding providers, OpenAI and Voyage; it does not provide infrastructure for self-hosted model serving.

pgEdge Starfleet stores the embedding API key encrypted on the server. If you edit the configuration later, the stored key remains functional only if you keep the same provider you originally selected. Selecting a different provider requires you to supply a new API key.

When you are finished, select the Enable MCP Server button to deploy the MCP Server.

Enabling, configuring, or disabling the service requires the database to be Available or Degraded, and appears in the Activity Log as an update-managed task. Each service change shares that one task name; the Activity Log does not discern between the MCP and RAG services.

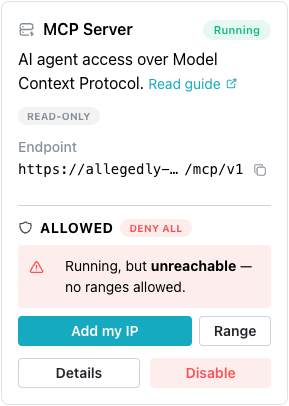

When enabled, the MCP Server pane updates to display:

• A color-coded status badge indicates the server's state: a running server displays Running, and every other state displays as the raw API value, in lower case, such as failed or pending.
• The server's Endpoint appears with a copy icon when the server is Running.
• A Details button takes you to the Services page, where you find information about connecting to MCP clients.
• A Disable button allows you to stop the MCP Server.
• The server's allowlist appears under ALLOWED. A new MCP Server allows no ranges, and when the server is running, the pane reads Running, but unreachable — no ranges allowed.

The MCP Server refuses every client connection until its allowlist has a range; the database allowlist does not apply to the MCP Server. Select Add my IP to add the address the console sees you connecting from, or select Range to add another range. For more information, see Controlling Network Access.

Disabling the MCP Server

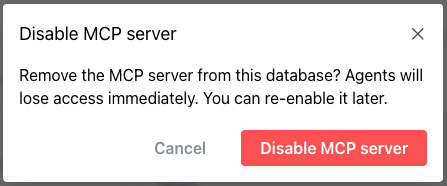

Select the Disable MCP Server button to stop the MCP Server. Disabling the server does not change your client configuration, and every request from that client fails when the server stops. A disabled endpoint may keep answering for a few seconds before it stops; you can enable the server again later.

Understanding the Server State

The state indicator on the Services page is not a readiness signal. The state changes to running when a deployment completes, regardless of what the server is doing. The indicator can show:

• Running means the deployment completed. The endpoint returns 503 for roughly fifteen to twenty seconds after the deployment completes.

• Failed is a reliable state that requires attention; consult the Activity Log to review the cause.

To test server readiness, connect a client to the endpoint. If the client reports the server as unavailable, wait a few seconds and reconnect.

Reviewing MCP Server Details

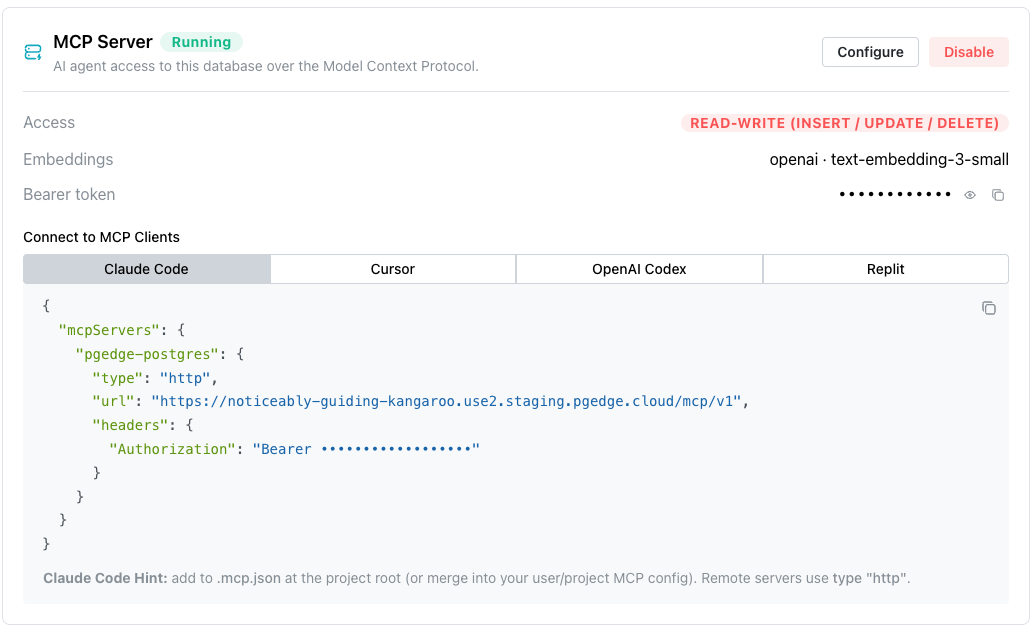

Select the Details button on a running MCP Server to open the Services page, which displays the server's status and configuration:

• Access displays if the server is read-only or READ-WRITE (INSERT / UPDATE / DELETE), based on the Allow writes setting chosen when the server was enabled.
• Embeddings displays the configured embedding provider and model (for example, openai · text-embedding-3-small), or Disabled if Generate embeddings was not enabled.
• Bearer token is the token used to authenticate MCP clients. Select the eye icon to reveal the token, or the copy icon to copy it. The token is the MCP Server's own credential and is not the database password.

Select Configure to modify these settings, or Disable to stop the server.

The connection endpoint appears in the Connect to MCP Clients panel only when the server reports Running. The endpoint is the database's own domain with /mcp/v1 appended to it, and includes no port; a pgEdge Starfleet service is reached over HTTPS on port 443.

Connecting a Client to the MCP Server

The steps for connecting a client to the MCP Server vary by client and platform. The Connect to MCP Clients section (below the server details on the Services page) displays ready-to-use connection details for four clients:

• Claude Code displays a JSON block with "type": "http", the endpoint as its URL, and an Authorization header, its value the bearer token. Add the block to .mcp.json at your project root, or merge it into your user or project MCP config.
• Cursor displays the same JSON without the type field. Add the block to .cursor/mcp.json in the repository for one project, or to ~/.cursor/mcp.json to make the server available everywhere.
• OpenAI Codex displays a TOML block declaring an mcp_servers.pgedge_postgres table with the endpoint as its URL, and an mcp_servers.pgedge_postgres.http_headers sub-table with the Authorization header. Append the block to ~/.codex/config.toml. The header block embeds the token directly, so it works however Codex is launched.
• Replit has no file to edit. The panel displays four values to copy one at a time: a display name of pgEdge Postgres, the MCP Server URL, a custom header name of Authorization, and its value, which is the word Bearer followed by the token. In Replit, add these values under Integrations, then MCP Servers, then Add MCP Server, then Test and Save.

Select a client button to view the client-specific configuration. In the displayed block the token is masked until you reveal it with the eye icon, but the copy icon always includes the real token regardless of whether it is revealed. For example, the Claude Code button displays JSON to add to .mcp.json:

{
  "mcpServers": {
    "pgedge-postgres": {
      "type": "http",
      "url": "https://<your-domain>/mcp/v1",
      "headers": {
        "Authorization": "Bearer <your-bearer-token>"
      }
    }
  }
}

Select the copy icon (in the upper-right corner of the code block) to copy the configuration. A hint below the code block provides client-specific setup guidance.

Remote servers, such as your pgEdge Starfleet MCP Server, use "type": "http".

Connecting Another Client

The server communicates using streamable HTTP at the endpoint, and authenticates requests using a bearer token in the Authorization header. Any client that accepts a URL and a header can use the same two values displayed in the panel.

Example - Connecting the MCP Server to Claude Code

The Services page provides the information needed to connect the MCP Server to Claude Code. Follow these steps to connect a deployed MCP Server to Claude Code:

1. In the console, navigate to the AI Services pane, then select Details on your running MCP Server, or select Services in the navigation panel.

2. Decide where to store the configuration:

   • At your project root, in a .mcp.json file scoped to that project (shareable with teammates via version control if desired). If you plan to commit this file, do not hardcode your bearer token in it; Claude Code supports ${VAR} environment-variable expansion in .mcp.json values, so you can reference an environment variable instead (for example, "Authorization": "Bearer ${PGEDGE_MCP_TOKEN}") and set the real token outside the file.
   • In your user-level Claude Code configuration, to make the server available across all your projects.

3. Open the .mcp.json file (project or user-level) if it already exists, or create a new one. If you are creating a new file, you need only include the snippet provided on the Claude Code tab of the Services page.

   If you already have an mcp.json file that lists other MCP Servers under mcpServers, take care not to overwrite them.

4. Add the pgedge-postgres entry. If the file is new, paste the whole block:

   {
     "mcpServers": {
       "pgedge-postgres": {
         "type": "http",
         "url": "https://<your-domain>/mcp/v1",
         "headers": {
           "Authorization": "Bearer <your-bearer-token>"
         }
       }
     }
   }


   If mcpServers already has other entries, add the "pgedge-postgres": { ... } key alongside them, inside the existing object.

5. Replace <your-domain>/mcp/v1 and <your-bearer-token> in the .mcp.json file with the real values.

6. Save the file.

7. Restart Claude Code, or start a new session in that project. Claude Code reads .mcp.json on startup and prompts you to approve or trust the new MCP Server on the first connection.

8. Verify the connection: run /mcp in Claude Code to confirm that pgedge-postgres appears in the list of active MCP Servers, then submit a natural-language query against your database to confirm the tool functions correctly.

   If the client reports the server as unavailable, the deployment may have finished moments earlier. Wait a few seconds and reconnect.

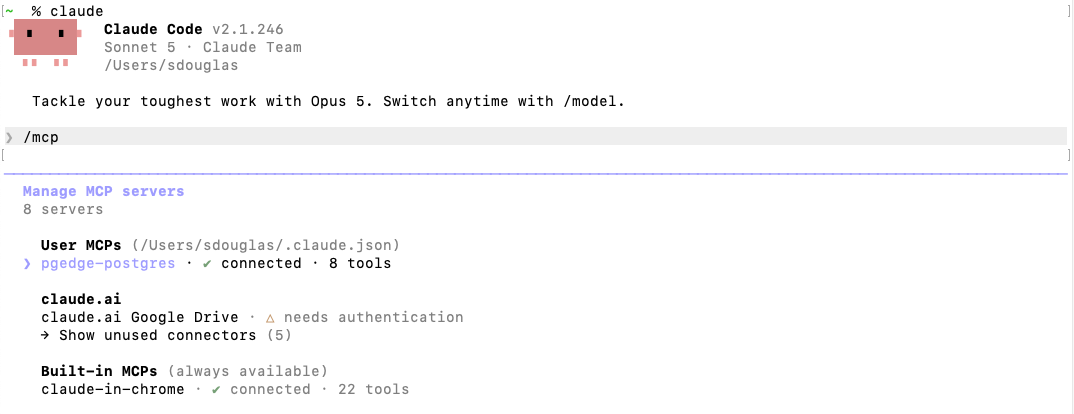

   The /mcp output displays pgedge-postgres as connected, along with the number of tools it exposes:

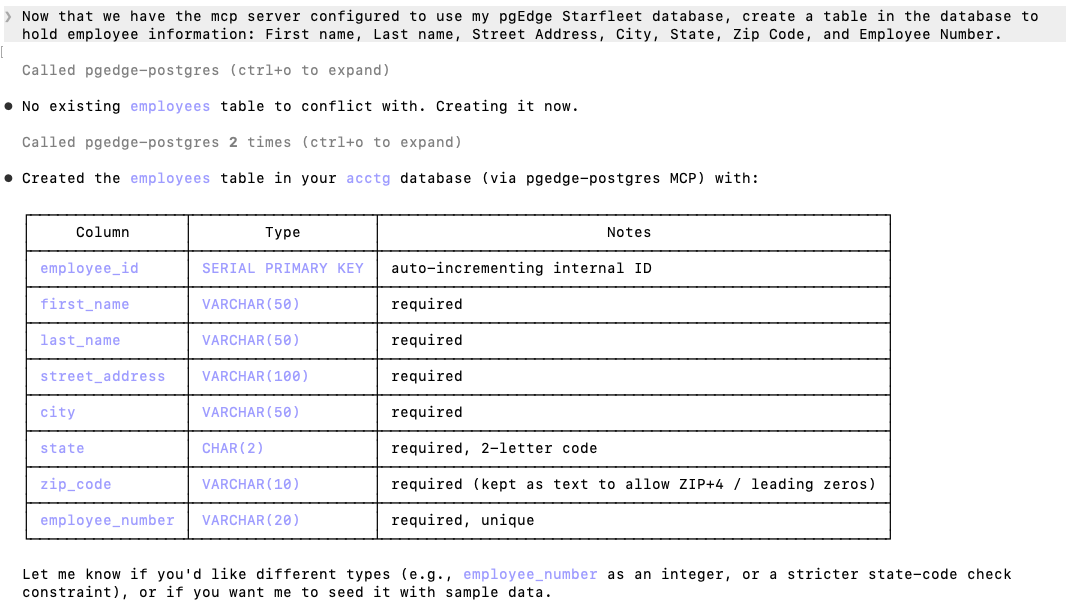

   Now you can ask Claude Code to invoke SQL queries against your pgEdge Starfleet database:

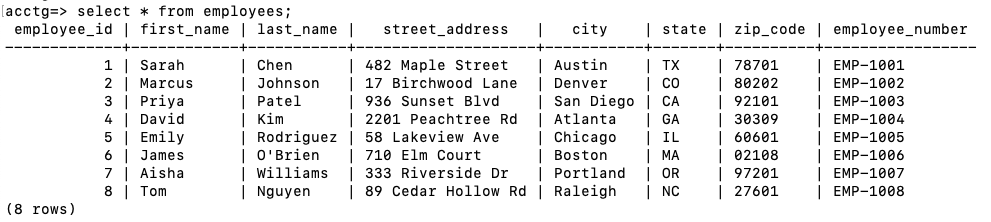

   Connecting directly to the database with psql as app (the owner of the table) confirms that the changes made through the MCP Server were applied to the underlying database:



Best Practices to Avoid Prompt Injection

An agent that reads your data can be manipulated by actors using the text in your data. Anything the agent reads becomes text within its context window, and text in a table row can be interpreted as an instruction rather than as data. A support ticket, a user profile, a product description, or a comment field can embed wording directed at the agent rather than at a person. The agent has no reliable way to distinguish between the two.

When using the MCP Server:

• Ensure that Allow writes remains off unless it is required. An agent that cannot write cannot damage your data.
• Disable Allow writes again when the task that required write or delete access is complete.
• Treat a write-enabled agent as a user with the app role's privileges, not as a tool. Only enable write access on a database whose data you would be willing to expose to an untrusted client.
• In a client that displays tool calls before executing them, review what the agent proposes before approving it.
• Exercise particular caution when accessing tables that contain text written by other users. Data you wrote yourself poses less risk than data submitted by other users.

How Password Changes Affect the MCP Server

Using the MCP Server on a Branch

If your database runs the MCP server, a branch of the database runs its own MCP server, with its own address and a separate MCP token. The source database's address and token do not work against the branch, so an MCP client needs the branch's own token and address. The MCP server's card on the branch's page displays the branch's Endpoint and Bearer token. The branch's MCP server copies this server's allowlist when the branch is created, and that copy cannot be changed, so add a client's address here before you create the branch. See Creating and Managing Branches.

Troubleshooting

• Unable to load services is displayed with the body text: We could not load this database. Refresh the page to try again.

  The MCP and RAG Servers keep running while the console cannot read them, so this indicates a console read failure rather than an outage of the services themselves.

• Failed to update MCP Server. is displayed when a service change is refused. This is the fallback text, displayed when the API sends no message of its own.

  A service change needs the database in an Available or Degraded state, and each service change writes one update-managed task, so the Activity Log records both failed and successful modification attempts.
