Adding or Modifying Firewall Rules

When you create a Cloud cluster, you can provide firewall rules that define the IP addresses or CIDR blocks that are allowed to connect to your cluster. To add or modify a cluster's firewall rules, highlight the name of a cluster in the navigation tree and select Update Firewall Rules from the Actions drop-down menu.

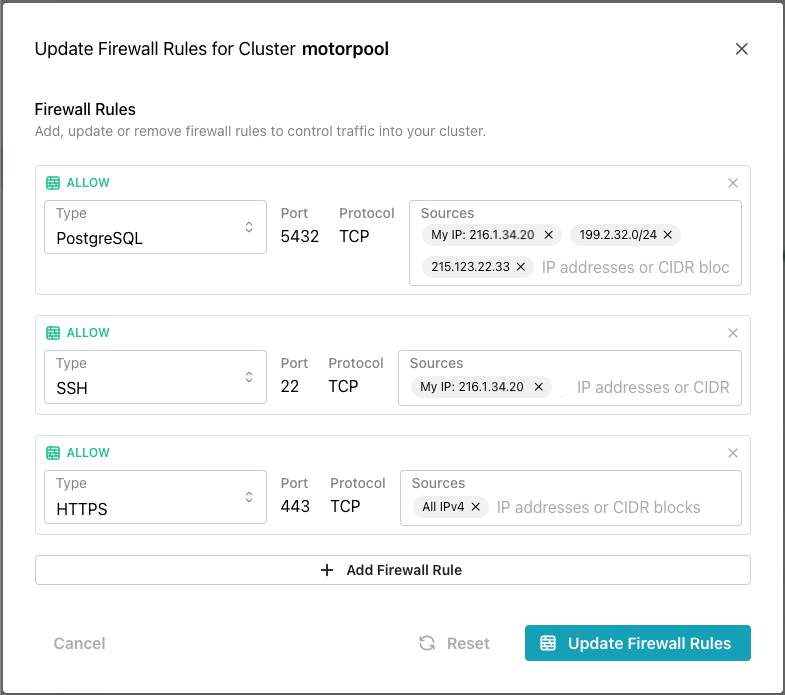

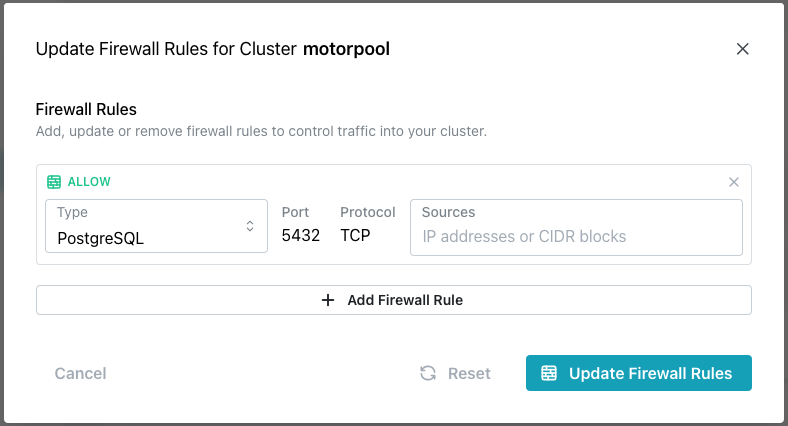

The Firewall Rules popup displays the currently defined rules for your cluster. You can click the + Add Firewall Rule bar to open a new line (as shown below) and add a new firewall rule, or modify the current rules:

To add or modify a firewall rule:

• Use the Type selector in the left column to specify the incoming connection type. You can create a rule that connects with:

• A Postgres client like pgAdmin or psql on port 5432.

• An SSH client on port 22.

• An HTTPS client on port 443.

• Use the Source Type selector in the right column to specify the type of connection source that is allowed to connect with this rule. You can choose from the following options:

• An IP address, specifying a single host or CIDR block.

• A prefix list, specifying a managed set of CIDR blocks.

• A security group, specifying a set of AWS instances.

• Use the Sources field in the left column to specify details about the connection source that will be allowed access to your cluster with the rule.

• To remove a source, click the X in the rule's Sources field.

• To add a source, click in the Sources field and select from the predefined options, or type directly in the field.

• Use the Applies To selector to choose the node or nodes to which the rule applies.

When you're finished, select Update Firewall Rules to modify your cluster's firewall. While the firewall is being modified, a blue dot to the left of the cluster name indicates that the changes are being applied. During this time, your cluster remains available for connections, but you must wait to make further modifications to the cluster definition.
