Reviewing Backup Details

Details displayed on dialogs related to backup and restore will vary based on the backup provider you selected during database provisioning.

You can use the pgEdge Backups page to review and manage database backups; the Backups page also provides access to links that allow you to perform an ad hoc backup or restore. To open the Backups page, select a database name in the navigation panel and select the Backups node from the navigation tree.

At the top of the Backups dialog, the header provides information about the selected database:

• The Database name.
• The length of time since the database was created.
• The name of the cluster in which the database resides.
• The PostgreSQL version used by the database.
• The version of Spock used by the database.

In the upper-right corner of the dialog, the Actions menu displays database management options that allow you to:

• Backup a database.
• Restore a database.
• Add the database to a new cluster node.
• Remove the database from a cluster node.
• Delete the database.

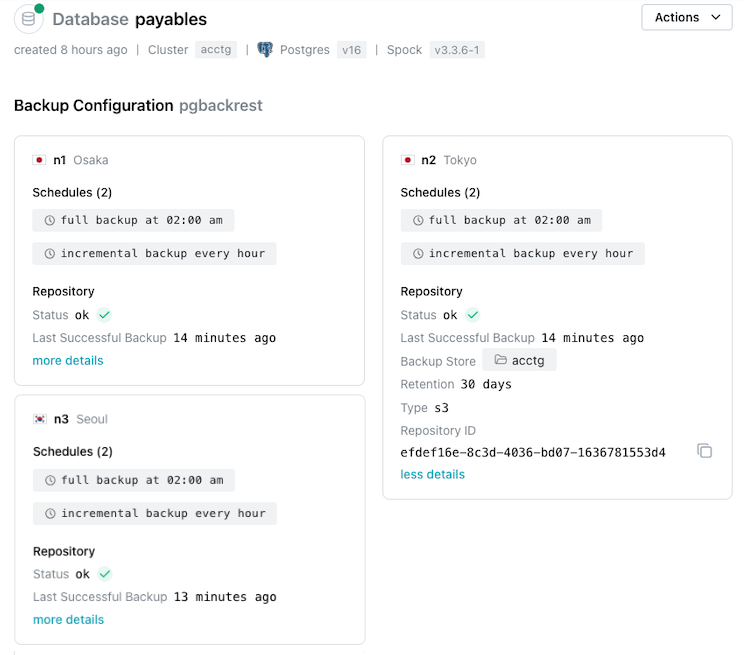

In the Backup Configuration panel, a pane for each database in your cluster displays configuration details for the database; select the more details link to view extended backup detail including:

• The node number, node name, and region identifier.
• The backup schedules for the database.
• The repository status.
• The length of time since the last backup.
• The name of the Backup Store used by the database.
• How long backups are retained for.
• The storage type of the Backup Store.
• The repository ID in which the backups are stored.

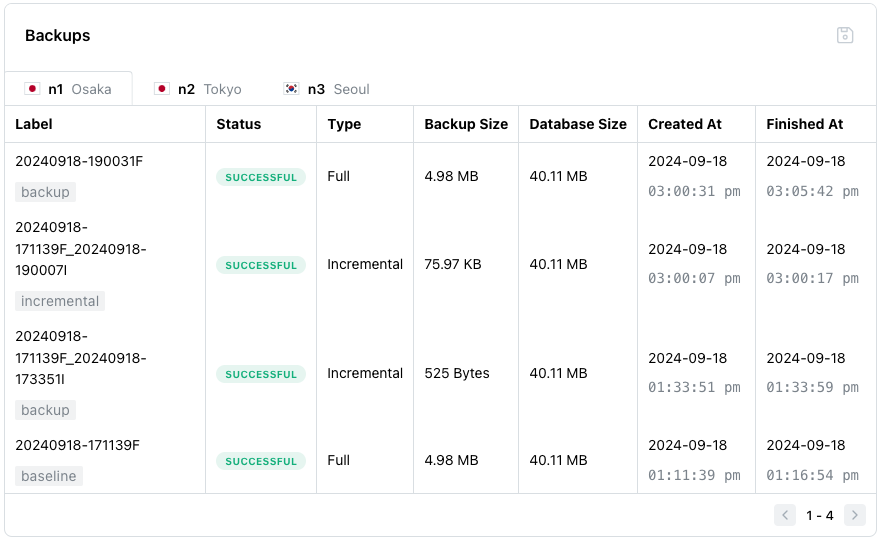

The Backups table displays the backups currently stored for the database:

The columns displayed in the Backups table will vary depending on your backup provider:

• Use the tabs across the top of the table to select the node you wish to see the backups for.
• The Label column (if you're using pgBackRest) or Name column (if you're using pg_dump) contains the backup identifier.
• The Status column displays SUCCESSFUL if the backup completed successfully.
• The Type column identifies the backup method; Full if the backup was a complete backup, Incremental if the backup only contains those changes that occurred since the last incremental backup, and Differential if it was a backup of only those changes that occurred since the last full backup.
• The Backup Size column displays the storage size of the database at the time of the backup.
• The Database Size column displays the storage size of the database.
• The Created At column displays the date and time the backup started.
• The Finished At column displays the date and time the backup completed.
• If you use pg_dump for your backups, you can use the context menu to the left of a backup name to access backup management options:
  • Select Download to download the backup archive.
  • Select Delete to delete the backup archive.

Note: If a pgBackRest backup fails, details are written to the tricorder log files. pg_dump backups that fail to complete are not displayed in the Backups table or written to log files.
