Managing a Cluster
You can use the pgEdge Cloud console to review cluster information; highlight the name of a cluster in the Clusters
menu to access the console for that cluster.

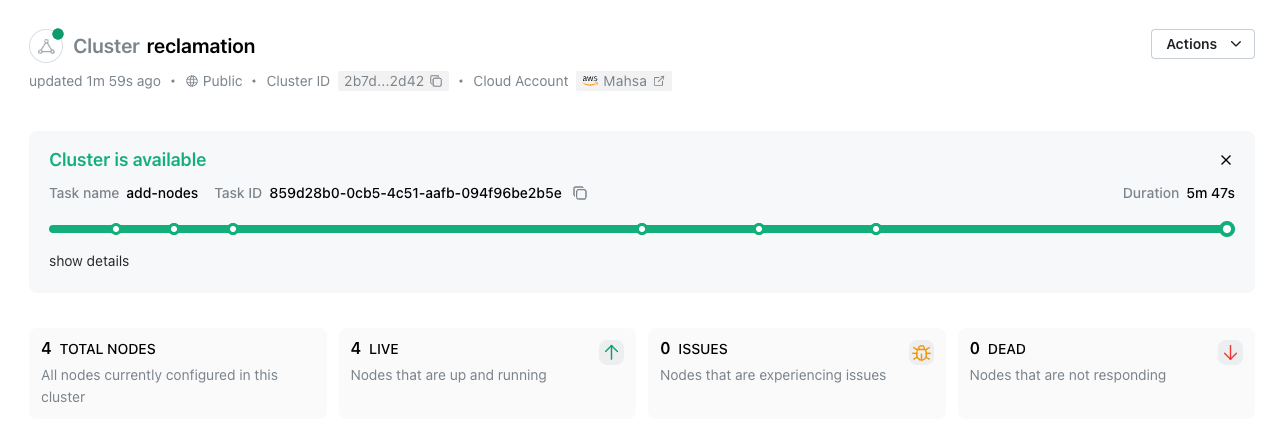

If you've recently created or modified the cluster, the header displays a banner showing the cluster state. The console header also displays information about the selected cluster:
- The cluster name.
- The length of time since the last cluster update.
- The preferred connection type (
Public
orPrivate
); this indicates if the cluster nodes are in a public subnet or not. - The
Cluster ID
associated with the cluster. - The name of the cloud provider account on which the cluster resides; click the name of the account to navigate to the details page for the account.
Also in the cluster header, a set of informational panes tell you the state of the cluster at a glance:
- the total node count
- the number of healthy nodes
- the number of unhealthy nodes
- the number of unresponsive nodes
The Cluster Information Tabs
The tabbed browser on the Cluster
tab provides quick access to information about the state of your cluster:
- Select the
Overview
tab to view information about the cluster, and the databases currently deployed on the cluster. Detailed information about the cluster's nodes is displayed below. Click on an icon in theDatabase
pane to navigate to detailed information about the selected database. - Select the
Metrics
tab to view details about cluster resource use. - Select the
Logs
tab to review cluster log files.
Accessing Cluster Details

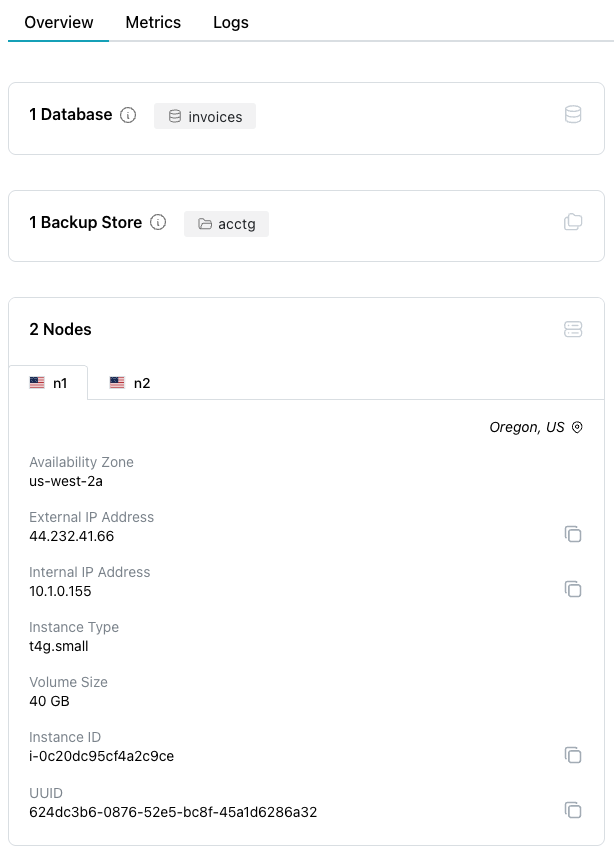

Select the Overview
tab to review information about the cluster. Panes on the Overview
tab contain links to cluster artifacts:
- Select a database name in the
Databases
pane to navigate to the information page for that database. - Select a backup store name in the
Backup Store
pane to navigate to the information page for the store.

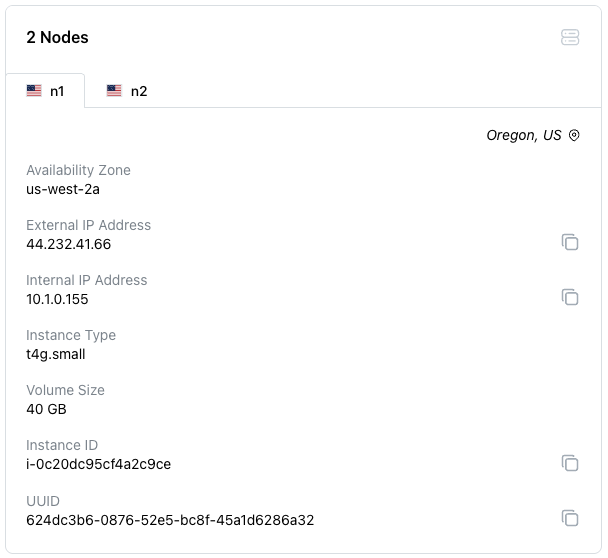

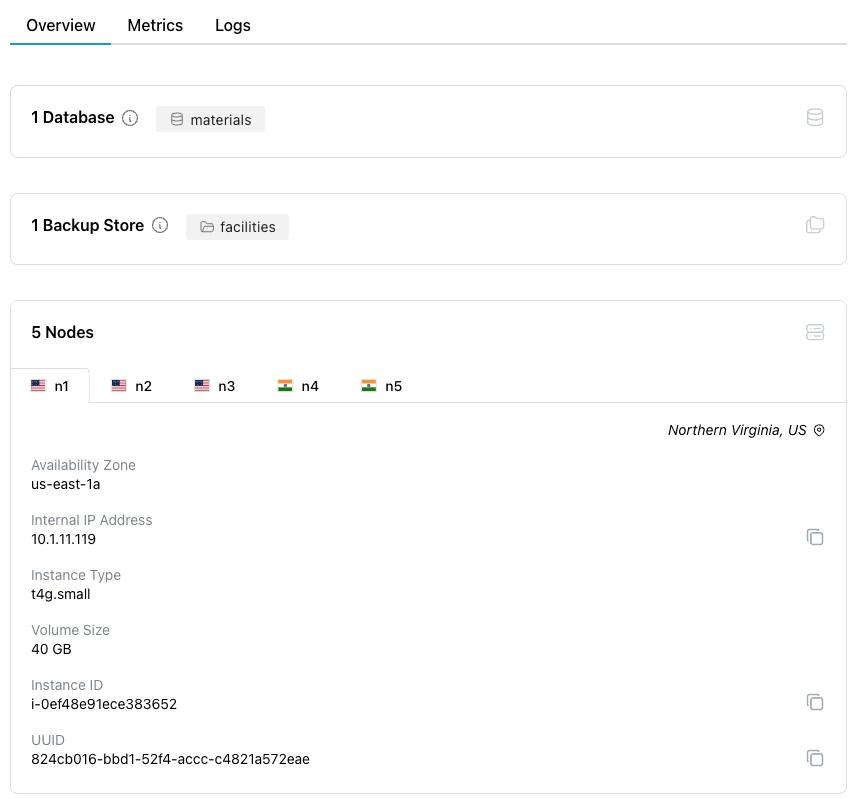

The Nodes
pane contains general node information. Use the tabbed browser to select a node to review information that node:
- The
Availability Zone
lists the provider region in which the node is deployed. - Use the
External IP Address
when making ssh connections to the node. - Use the
Internal IP Address
when configuring VPN connections to the node. - The
Instance Type
andVolume Size
fields provide node size information. - The
Instance ID
identifies the node and associated resources in the cloud provider console. - The
UUID
is a unique identifier for cluster resources outside of the cloud provider console; use the UUID when making API calls.

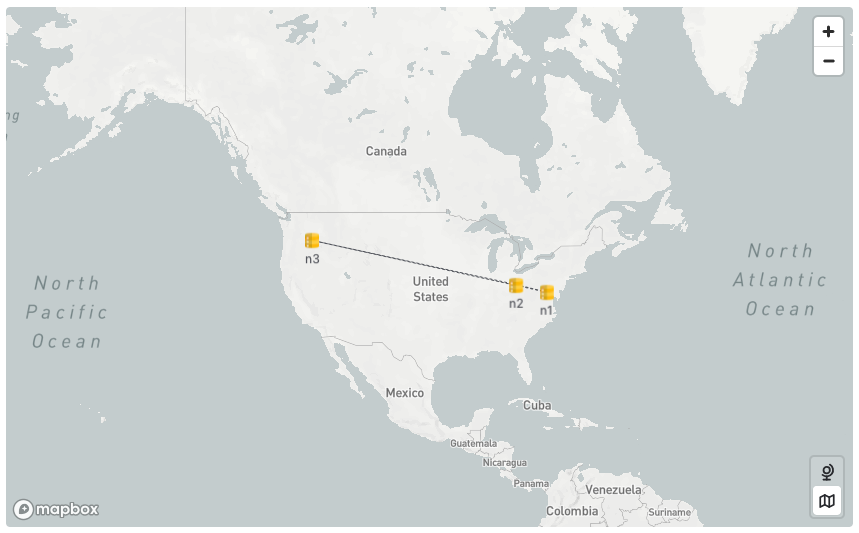

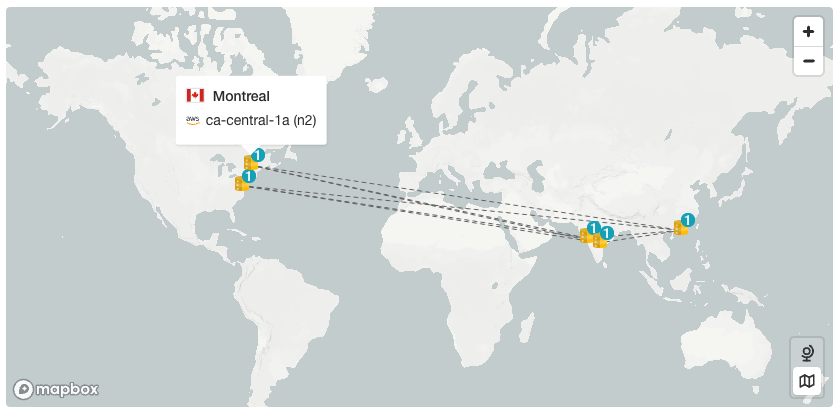

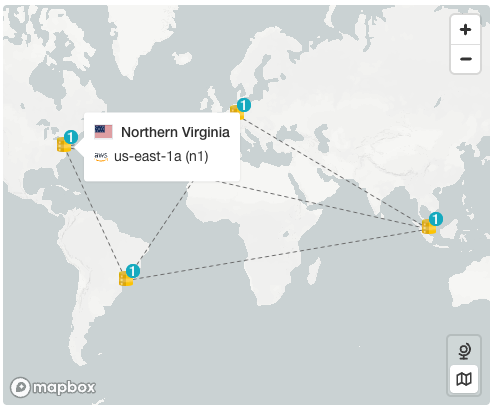

The Cluster Node Map
When the Overview
tab is selected, a map displays the locations of the cluster's nodes. Hover over a mapped node to display the name and city in which the node resides.

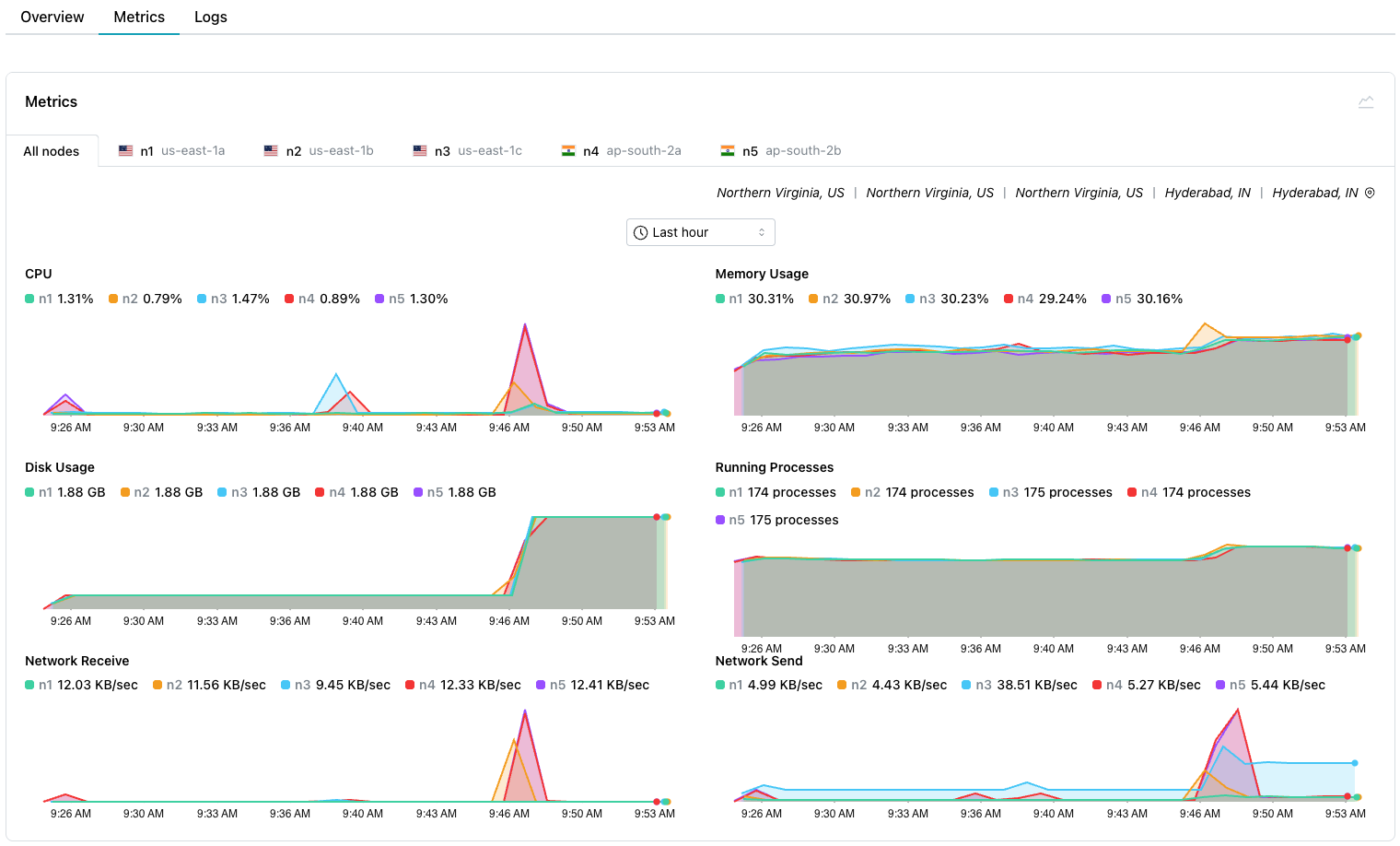

Reviewing Cluster Metrics

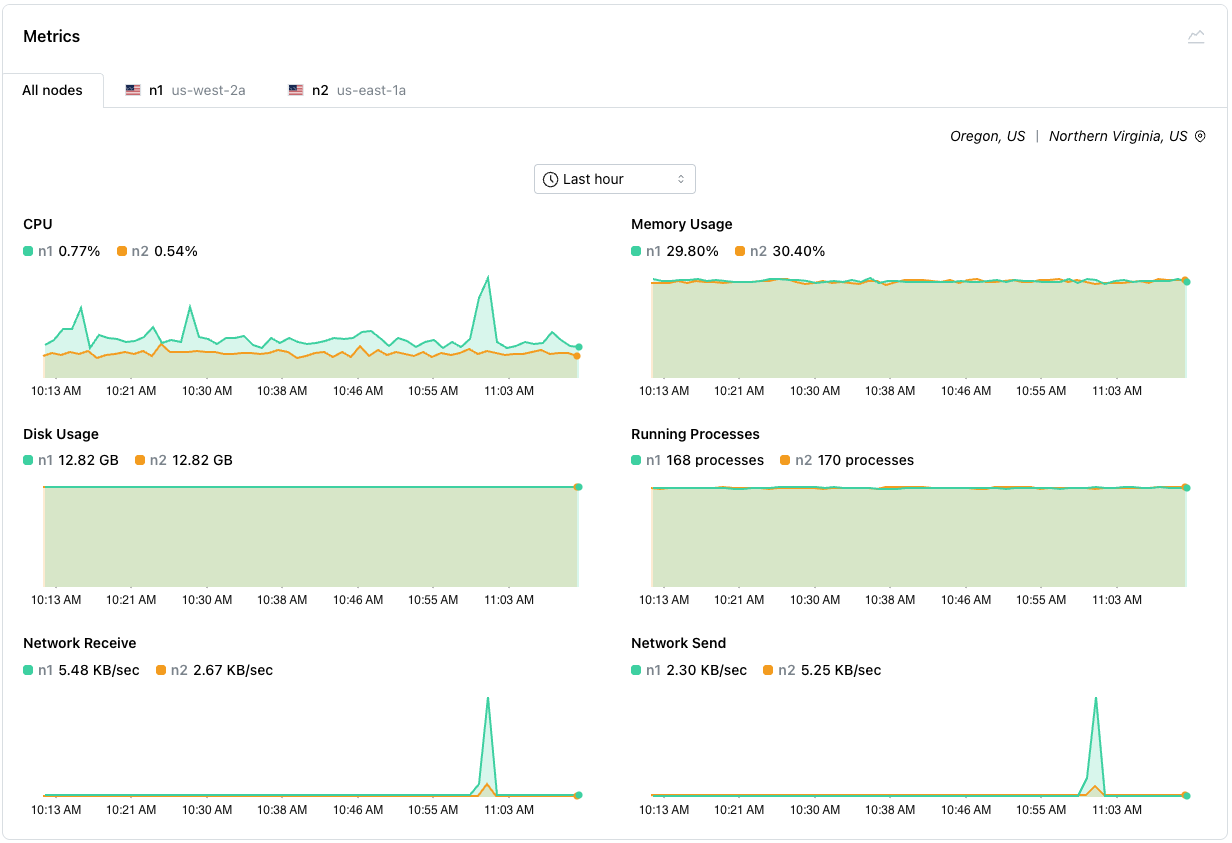

Select the Metrics
tab to review detailed system resource usage for the cluster.
Select from tabs across the top to review a graph containing:
- Metrics for
All nodes
in your cluster. - Metrics for a specific node in your cluster.
Use the drop-down at the top of the Metrics
pane allows you to specify the length of time displayed by each graph.

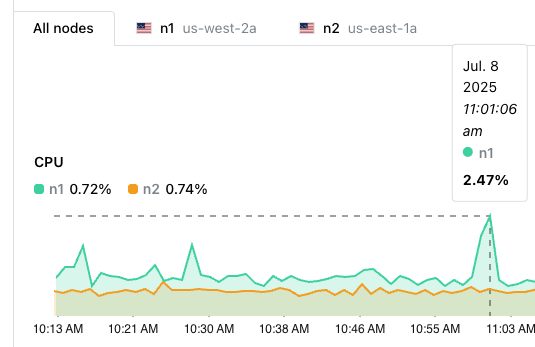

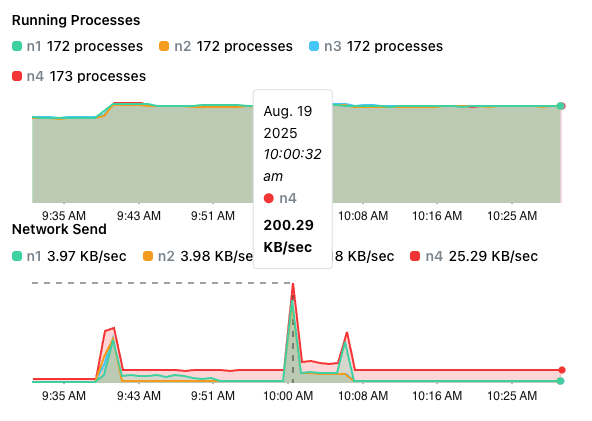

Select a point on a graph to display information about the graphed event that occurred on your cluster:

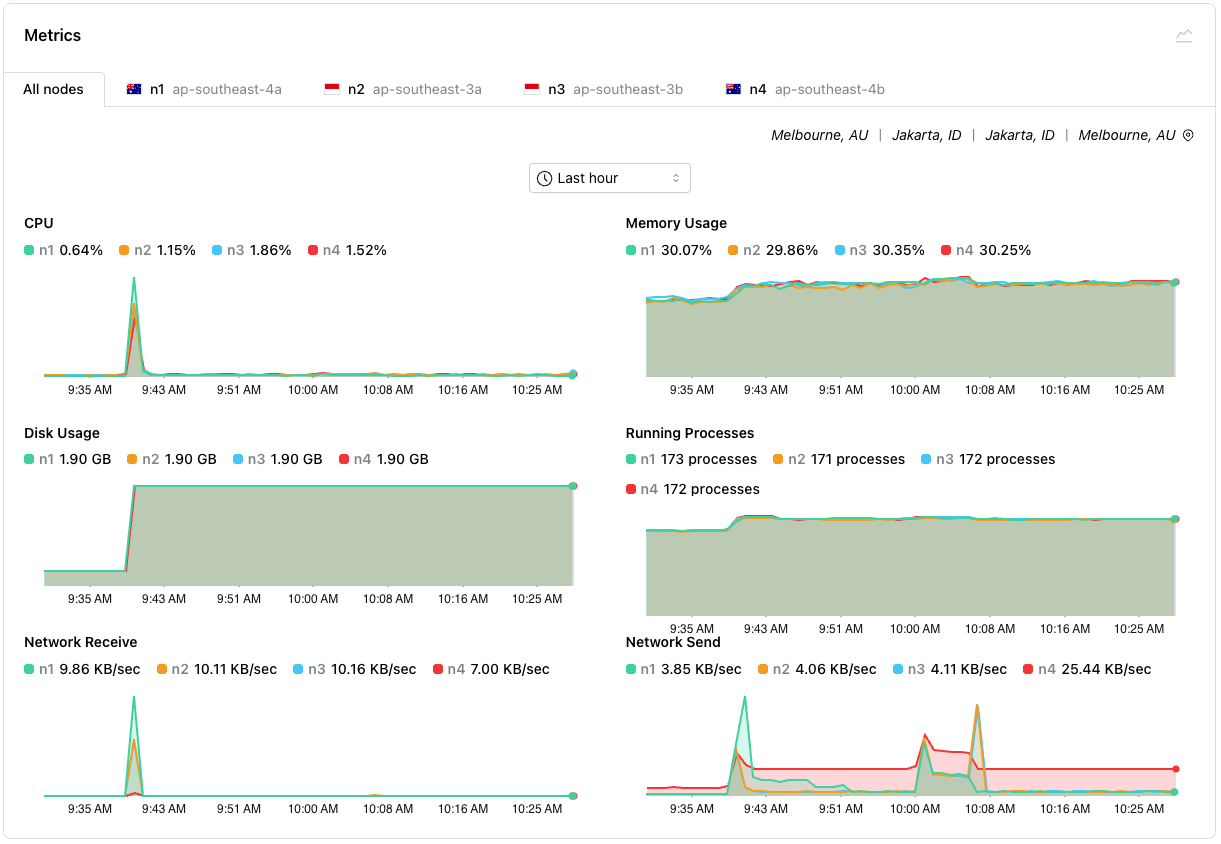

The graphs display metrics about:
Graph Name | Description |
---|---|
CPU | The percentage of CPU used by the database |
Memory Usage | Memory used (in MB) |
Disk Usage | The amount of disk space used (in GB) |
Running Processes | The number of running processes |
Network Receive | The amount of data received by the instance |
Network Send | The amount of data transmitted from the instance |

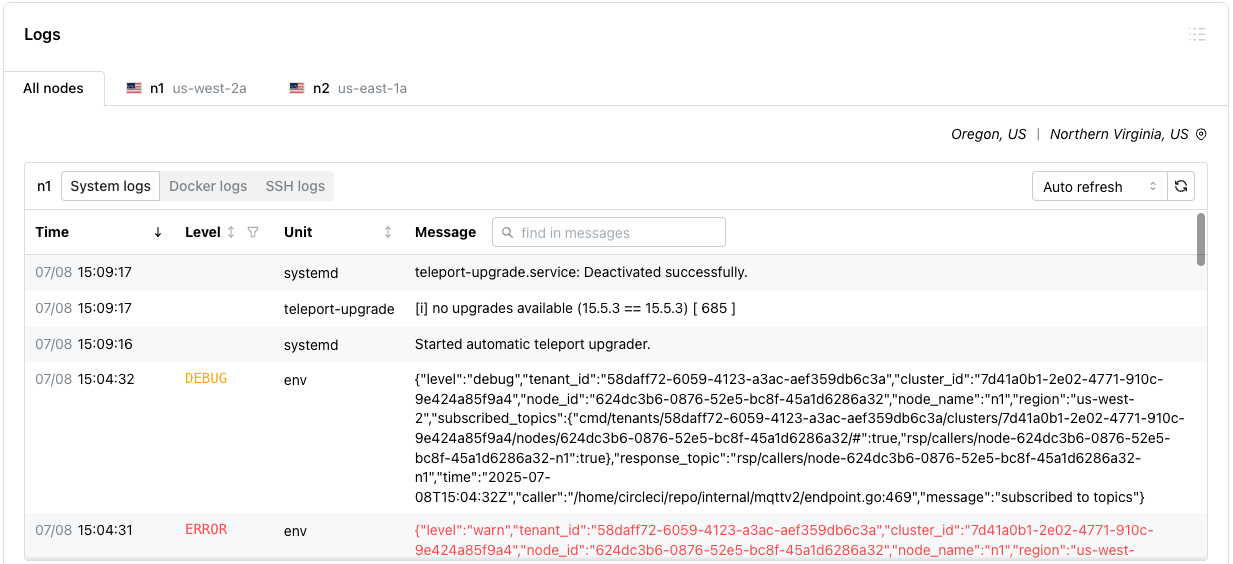

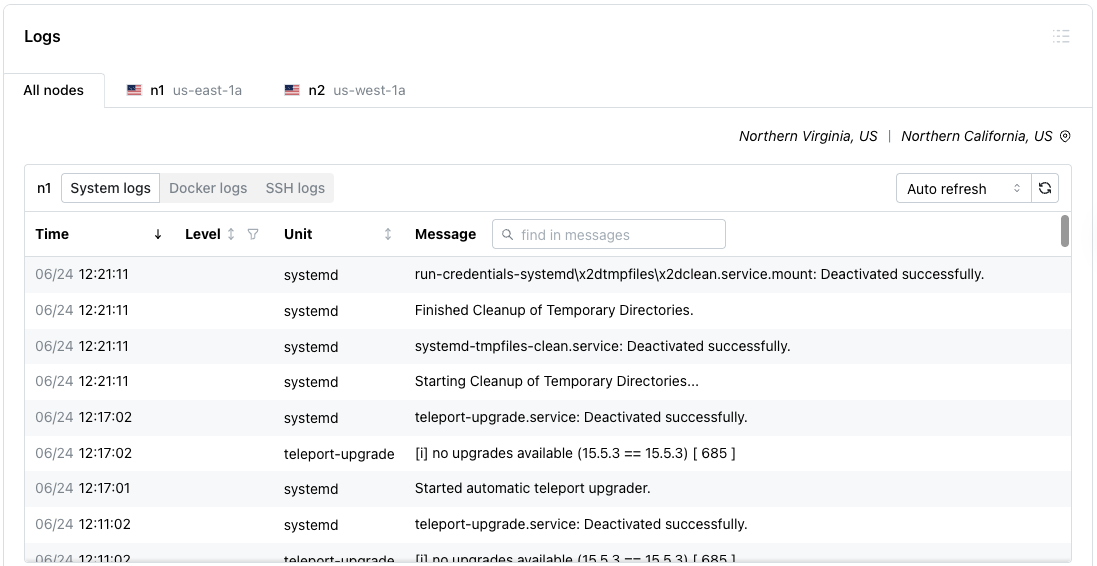

Reviewing Cluster Log Files
Select the Logs
tab to review log files for the cluster.
Use the tabs across the top to select the node(s) for which you'd like to review the log files. Then:
- select
System logs
to review the system commands performed to manage your cluster. - select
Docker logs
to review the Docker-specific commands executed to manage the container in which your cluster is running. - select
SSH logs
to review details about ssh connections made to your cluster.
Use the Auto refresh
/Manual refresh
drop-down to specify if the log entries should update automatically (Auto refresh
), or to pause updating (Manual refresh
) for easier viewing. To manually refresh the log table's content, select the refresh button to the right of the drop-down.
Use controls in the table header to sort or search the selected log file:
- Select a column heading to sort alphabetically by the column value; click a second time to reverse the sort order.

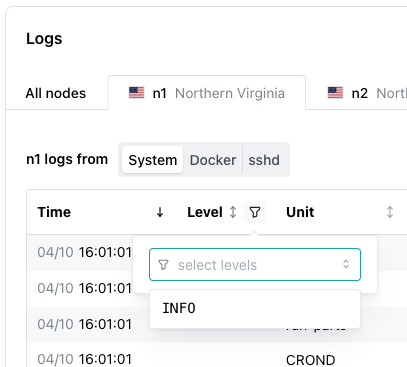

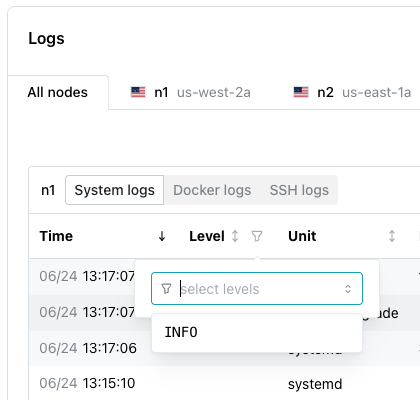

- Click the filter icon to the right of the
Level
heading to select a status from the drop-down; all rows assigned the selected status will be filtered to the top of the result set.

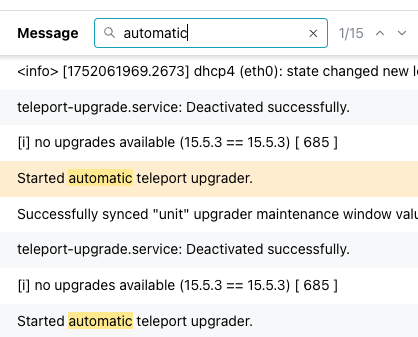

- Use the search box to the right of the
Message
label to enter a search string; the search term will be highlighted in the log file entries. Use the navigation arrows to move to the next/previous occurrence of the search term.
pgEdge Resources
Use the links at the end of the navigation pane to access pgEdge resources:
- For an invitation to the pgEdge Discord server, select the
Community
link. - To review the documentation, select the
Docs
link. - To manage account details, select the
Settings
link. - Select the
Team Management
link to manage account membership.
