Enhancing ACE Performance with Merkle Trees

ACE adds functionality that uses Merkle trees (opens in a new tab) to make table comparisons significantly faster. In most cases, performing a normal mode table-diff, when run with tuned parameters, can produce diff reports in anywhere from a few seconds to a few minutes depending on the size of the table, network latency, disc I/O latency, and similar factors. The Merkle tree feature in ACE is intended for tables where performing a diff without a Merkle tree might take hours to complete.

Initialising the Merkle Tree Objects for a Table

You must perform two initialisation steps before using Merkle trees:

• Create the Merkle tree functions and operators at the database level.
• Create a Merkle tree metadata table for the candidate table.

The following command initialises functions and operators at the database level:

./pgedge ace mtree init cluster_name

The second command creates pre-computed hash objects and triggers on the candidate table. If you pass --recreate-objects=true during the build phase, the previous step is not necessary. Use the following command to build a pre-computed hash table:

./pgedge ace mtree build cluster_name schema_name.table_name --max-cpu-ratio=1 --recreate-objects=true

This command creates a table in which to store the Merkle tree of the candidate table, and adds triggers to track modifications to it.

It is also worth noting here that because the Merkle tree feature in ACE is built to handle very large tables, it uses probabilistic sampling and estimates to compute things such as the number of rows, primary key ranges, etc. For these estimates to work correctly, the table should be ANALYZED beforehand. You can pass in --analyse=true during the Merkle tree build to let ACE analyse the table, but we recommend that an ANALYZE table is performed manually on the table before invoking mtree build with ACE simply because it might take a while for the analysis to complete. However, if you are not actively using the table, then ANALYZE may not be necessary.

Building Merkle Trees in Parallel

If your table is extremely large (say, close to a billion rows, or ~1 TB in size), then building the tree even on a single node might take a non-trivial amount of time. The good news is that the build operation needs to happen just once per table per cluster. If the ACE (management) node is used to remotely build the trees on each node, there is additional latency because of the network distance between the ACE host and the database instances.

For example, if you are using the n1 node as the ACE management node of a three-node pgEdge cluster (with n1, n2, and n3), building the tree on n1 may be comparatively faster (because of network latency) than when ACE on n1 tries to build the same tree on n2 or n3.

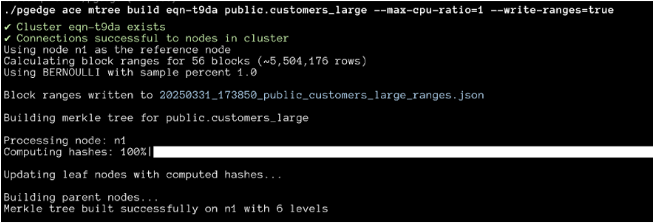

As a workaround, you can build the Merkle trees in parallel; when you invoke the mtree build command, include the --write-ranges=true clause as shown below:

./pgedge ace mtree build cluster_name schema_name.table_name --max-cpu-ration=1 --write-ranges=true

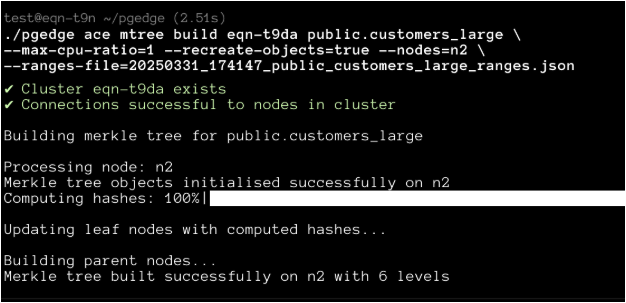

This command outputs the computed ranges to a file, and then begins the hash computations. While that command is running, you can scp the ranges file to the remaining nodes. Then, on the other nodes, use the same mtree build command, but this time, specify the file name with the --ranges-file=/path/to/ranges-file.txt option as shown below:

./pgedge ace mtree build cluster_name schema_name.table_name --max-cpu-ration=1 --recreate-objects=true --nodes=node_name --ranges-file=/path/to/ranges-file.txt

While running the build on each node using the --ranges-file option, make sure to specify only one specific node in the --nodes option. For example, when building a tree on n1, include --nodes=n1, or when building a tree on n2, include --nodes=n2, or ACE will attempt to remotely create the Merkle tree tables on other nodes in the cluster - the very thing you want to avoid for large tables.

Using ACE Functions with Merkle Trees

The following ACE commands use and manage Merkle tree functionality.

mtree table-diff

To perform a table-diff using a Merkle tree, use the command:

./pgedge ace mtree table-diff cluster_name schema_name.table_name

mtree update

Performing an mtree table-diff automatically updates the Merkle tree before performing the diff. You can also perform a Merkle tree update with the command:

./pgedge ace mtree update cluster_name schema_name.table_name

Passing in --rebalance=true with either a diff or update command will perform splits and merges of blocks based on changes in the underlying keyspace; you don't need to perform a rebalancing unless it's essential. The default update operation in mtree table-diff takes care of block splits and updates but defers merges. This is to preserve parent-child relationships and avoid costly recursions due to merged blocks.

mtree teardown

You can remove table-specific triggers and objects with the following command:

./pgedge ace mtree teardown cluster_name schema_name.table_name

To remove cluster-level objects (custom operators, generic functions, etc.) use the following command:

./pgedge ace mtree teardown cluster_name

Performance Considerations

Since the Merkle tree initialisation process adds triggers to the candidate table, you may encounter a performance impact on normal user queries to the table. This impact is application dependent and needs to be measured and deemed acceptable before using this feature.
